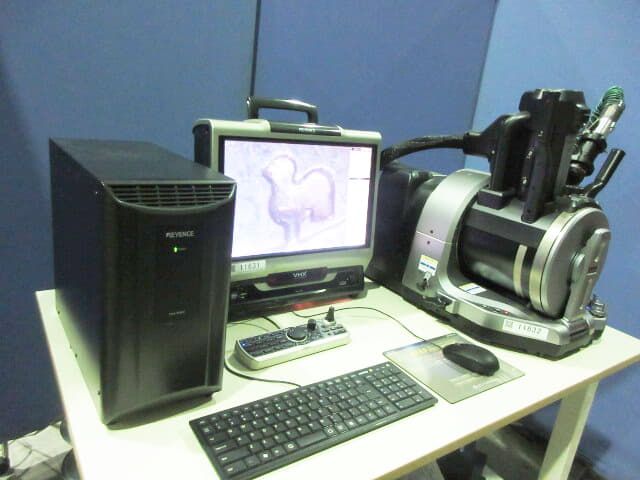

Keyence VHX-2000 Digital Microscope

Keyence Digital Microscope VHX-2000, Ultra-Deep Multi-Angle Lens VHX-D510

[VHX-2000] Digital microscope
Monitor: 17-inch color LCD (TFT type)
Image sensor: 1/1.8-inch 2.11 million pixel CMOS image sensor
Resolution: Maximum 54 million pixels
Storage medium: CD-R/CD-RW
HDD capacity: 500GB (165GB reserved)
Interface: LAN (RJ-45), USB2.0 series A (6 systems),
USB3.0 series A (2 systems)
Power supply: AC100-240V 50/60Hz
Camera unit: VHX-1100

[VHX-D510] Ultra-deep multi-angle lens
Tilt angle: VH lens: 50 degrees left ~ 100 degrees to the right

Sample size: Full observation Φ100mm
Sample chamber: 200mm x 200mm, Sample height 30mm
Sample stage: X-axis ±15mm, Y-axis ±15mm, Z-axis 30mm, θ-axis 360°
Magnification: 30 to approx. 5000x (vertical observation),
30 to 2000x (tilted observation)
Power supply: AC100V±10%, 50/60Hz
External dimensions: Head W673×D650×H600mm
*W is when using maximum tilt
Controller: W175×D460×H350mm
Weight: Head approx. 40kg
Controller approx. 15kg
Accessories: Optional operation panel (VHX-D1),
2 filaments (one unused), 1 objective aperture
Controller (VHX-D500), Vacuum pump (GLD-051)

[Equipment status]
※Instruction manual included
※Control software, chamber view software, and communication software
for VHX-2000 are included.
※Standard sample is not included.
(Necessary to use for automatic adjustment)
* Sold as a set with the ultra-deep multi-angle lens VHX-D510
