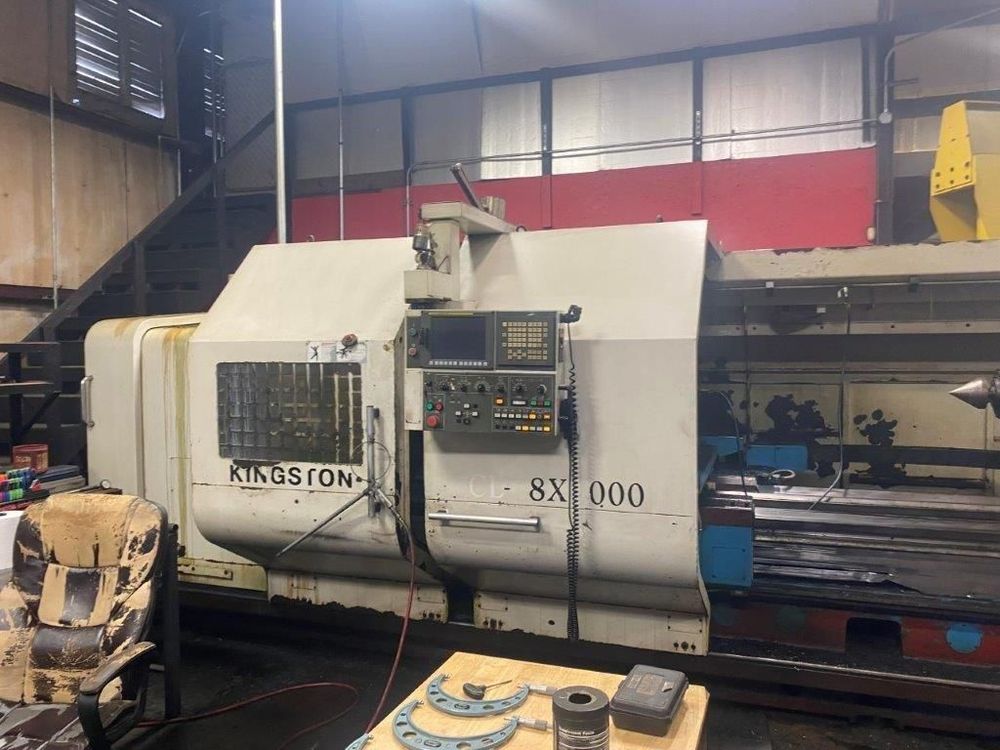

Kingston Fanuc 0i-TD/crt 650 rpm CL-68 x 3000 2 Axis

Kingston CL-68 x 3000
2011

Control: Fanuc 0i-TD/crt
10" Spindle bore, 120" centers, 25" 4-Jaw Chuck with 10" hole

Capacity: Swing 45 "
Swing Over Cross Slide 27.5 "
Maximum Machining Diameter 41.5 "
Distance Between Centers 120 "

Spindle: Spindle Speed: Minimum (RPM) 6 rpm
Maximum 650 rpm
Spindle Bore 10 "
Main Motor 50/60 hp
Spindle Nose A2-15

Turret: Number Of Positions 8
X-Axis Travel 22 "
Z-Axis Travel 120 "

Tailstock: Quill Diameter 9.4 "
Quill Travel 7.1 "
Taper 6 MT

Equipped With:
Fanuc 0i-TD CNC Control with Manual Glide 1 and Threading Repair
Box Ways Cross Slide and Carriage
Dead Center for Tailstock
28.5" Bed Width
Auto Lube System
Coolant System
Chip Conveyor
Tailstock movable by engaging with carriage
Tailstock with live Center
Moving Door and Splash Guard
Front and Rear 25" 4-Jaw Manual Chucks with 10" bores
