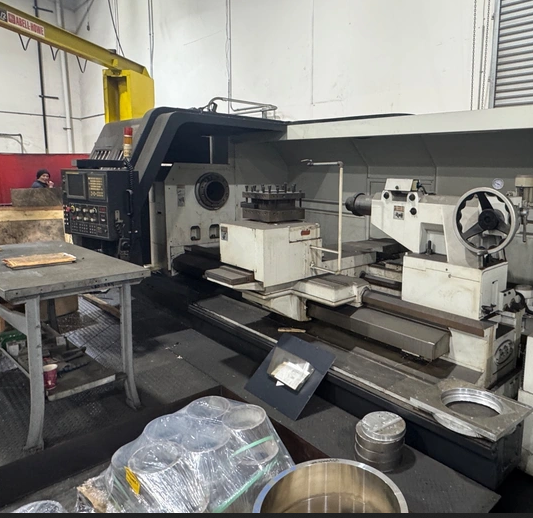

Kingston Fanuc 21iTF CNC control Variable Speed LD 48 X 80 2 Axis
Ref :
2779833-3-AW
Condition :
Used
Manufacturer :
Kingston
Controller :
Fanuc 21iTF CNC control
Spindle Speed :
Variable Speed
Model :
LD 48 X 80
Nb Of Axis :
2 Axis
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Swing over bed: 48"
Distance between centers: 80"
Spindle bore: 9"
Spindle nose: A2-28
Rapid traverse X-axis: ~236 in/min
Rapid traverse Z-axis: ~314 in/min
Main spindle motor: 50 HP
X-axis servo motor power: 5.3 HP
Z-axis servo motor power: 8.0–9.4 HP
Bed width: 28.5"
Fanuc 21iTF CNC control
V8 hydraulic turret
Heavy-duty MT#6 tailstock quill
Approximate tailstock load capacity: 26,000 lbs
Box ways construction
No chuck included
