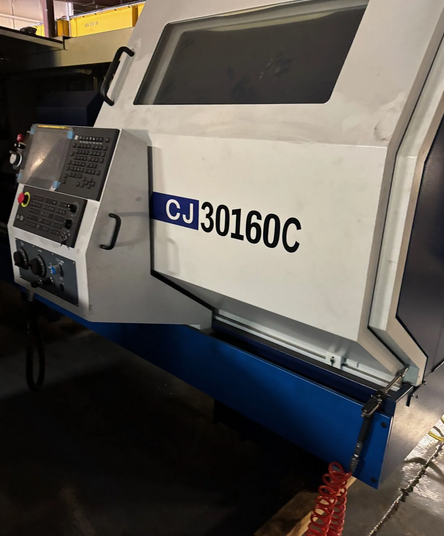

Kingston Fanuc 0iTF Plus 2000 RPM CJ30160C 3 Axis

X-axis travel: 15.3"
Z-axis travel: 146.8"
Rapid traverse X-axis: 315 in/min
Rapid traverse Z-axis: 275 in/min
C-axis
Control: Fanuc 0iTF Plus
Coolant system
Remote MPG handwheel
Automatic lubrication
Work light
V12 live tooling turret VDI 40
Swing over bed: 29.9"
Swing over cross slide: 21.8"
Swing in gap: 40.9"
Gap width from faceplate: 11.8"
Distance between centers: 160"
Maximum cutting length: 144.8"
Width of bed: 18.9"
Spindle bore: 6.1"
Spindle motor: 20/25 HP
Spindle nose: A2-11
Spindle speed: 0–2000 RPM
Servo motor X-axis: 11 Nm
Servo motor Z-axis: 20 Nm
Tailstock quill center: MT #6
Tailstock quill diameter: 4.125"
Tailstock quill travel: 11.8"
25" 3-jaw chuck A2-11 spindle mount
25" 4-jaw chuck A2-11 spindle mount
Floor space (L x W x H): 264" x 89" x 89"
Net weight: 16,280 lbs
Total power required: 26 KVA
8.3" steady rest with roller jaws
4.9" steady rest with roller jaws
19.7" steady rest with roller jaws
Fanuc a30i servo spindle motor
Boring bar holder on cross slide
Hydraulic tailstock
Heavy duty live center 6 MT
Follow rest
Auto tool probe
Transformer
Chip conveyor with cart tail exit
