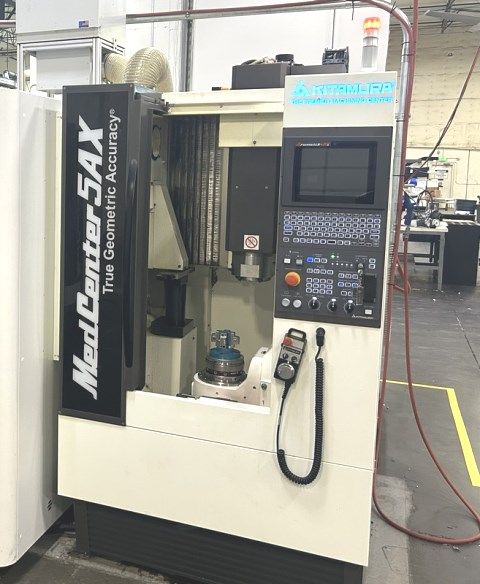

Kitamura MEDCENTER 5AX 5 Axis

X-axis travel: 10 in
Y-axis travel: 13 in
Z-axis travel: 13 in
Rapid traverse X/Y-axis: 2362 IPM
Rapid traverse Z-axis: 1969 IPM
A-axis travel: -120° to +120°
A-axis rapid traverse: 36000°/min
C-axis travel: 0° to 360°
C-axis rapid traverse: 72000°/min
Control: Arumanik Mi Control
Renishaw NC4+ Blue F115C probe
Integrated trunnion rotary table
Table diameter: 6.7 in
Maximum table load: 44 lb
Spindle speed: 300-30000 RPM
Spindle taper: HSK-E40
Spindle power: 469 HP
Automatic tool changer: 120 tools
Positioning accuracy: ±0.000079 in
Repeatability: ±0.000039 in
Spindle oil cooler
Chip conveyor, scraper type
Machine dimensions: 91.7 in x 116.1 in x 97.2 in
Machine weight: 9900 lb
