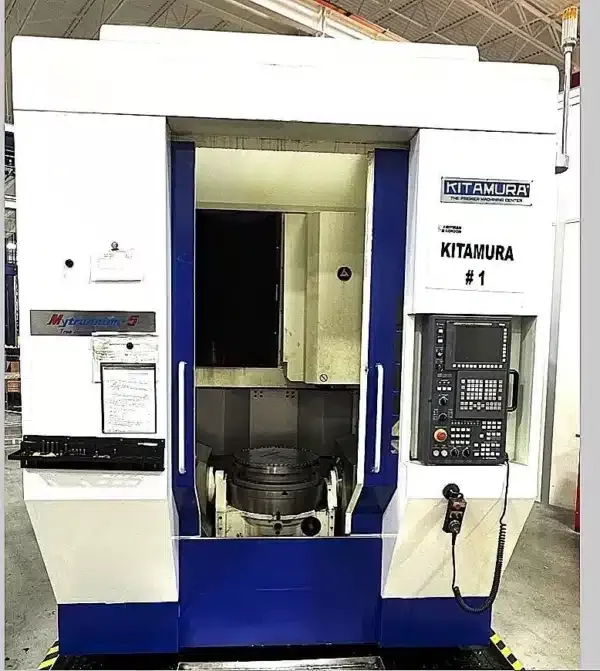

Kitamura MYTRUNNION-5 5 Axis

X axis travel 32.3"
Y axis travel 29.3"
Z axis travel 19.6"
A axis tilt 150°
C axis rotation 360°
CNC control Fanuc 30i Model B
Simultaneous 5 axis machining
Coolant through spindle
Glass scales on axes
PCMCIA card slot
128 MB memory
Spindle chiller
Spindle orientation
Helical interpolation
Rigid tapping
Absolute incremental programming
Flood coolant system
Separate coolant tank
Chip conveyor
Work light
Table size 24.8" x 19.7"
Max table load 880 lbs
Spindle speed range 20–20000 RPM
Spindle motor power 20 HP
Rapid A axis 2000 deg/min
Rapid C axis 6000 deg/min
Cutting feedrate 984 IPM
Max feedrate X axis 1968 IPM
Max feedrate Y axis 1968 IPM
ATC capacity 50 tools
Max tool size 5.91" x 11.8"
Max tool weight 22 lbs
Tool change time 1.7 sec
T-slot 0.7" x 3
Table to spindle nose 3.9" – 23.6"
Machine weight 38000 lbs
