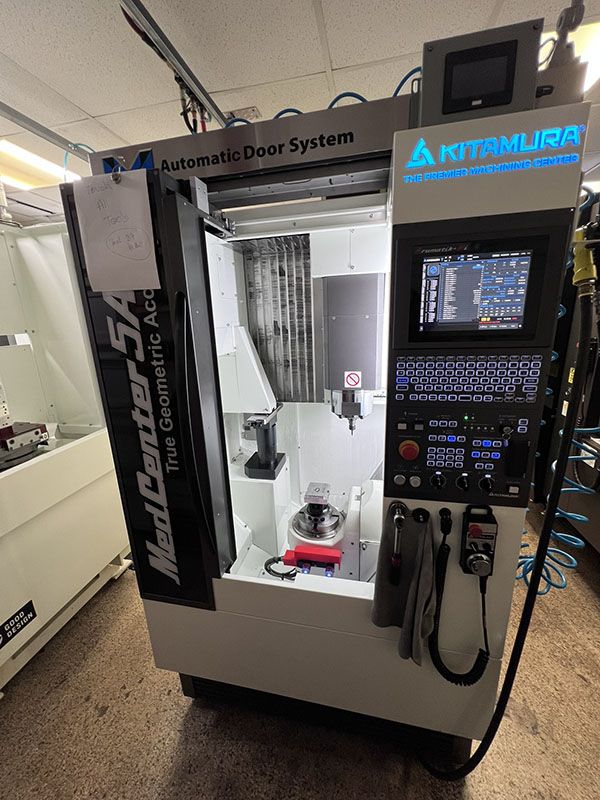

Kitamura MEDCENTER 5AX (TRUNNION) 5 Axis

X-Axis Travel: 12″ (254 mm)
Y-Axis Travel: 13″ (330 mm)
Z-Axis Travel: 13″ (330 mm)
A-Axis Travel: ±120° (240° total)
C-Axis Travel: 360°
5-Axis Simultaneous Machining
CNC Control: Arumatik Mi

Table Size: 6.7″ (170 mm)
Maximum Work Diameter: 7.1″ (180 mm)
Maximum Workpiece Height: 6.9″ (175 mm)
Table Load Capacity: 44 lbs (20 kg)

Spindle Speed: 30,000 rpm
Spindle Taper: HSK-E40
Spindle Horsepower: 24.5 hp
Spindle Nose to Table: 2″ – 15″

Rapid Traverse (X/Y): 2362 ipm
Rapid Traverse (Z): 1969 ipm
Rapid Traverse (A): 36000 deg/min
Rapid Traverse (C): 72000 deg/min
Cutting Feed Rate: 1969 ipm

Automatic Tool Changer: 40 tools
Max Tool Diameter: 2″
Max Tool Length: 7.9″

Trunnion Table
Linear & Rotary Scale Feedback
4th & 5th Axis Clamping Mechanism
Coolant Through Spindle
High Pressure Coolant Through Spindle
Renishaw Part Probe (RMP40 & OMP40)
Renishaw Tool Presetter (NC4-1)
Spindle Air Blow
Spindle Oil Chiller
High Discharge Chip Conveyor
Midaco Auto-Door

Approx Floor Space: 47.2″ W × 80″ D × 88″ H
Machine Weight: 9,260 lbs
Run Time: 500 hours
