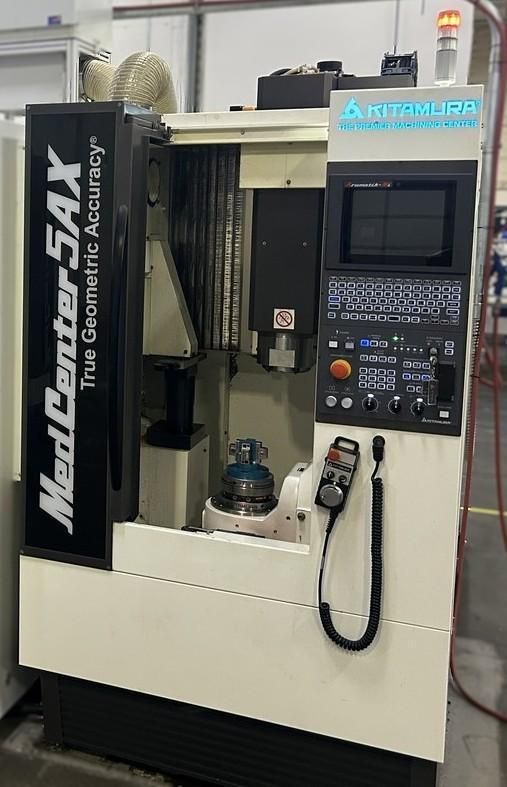

Kitamura Medcenter5AX Vertical CNC 5 Axis

X-axis travel: 10.0 in
Y-axis travel: 13.0 in
Z-axis travel: 13.0 in
A-axis travel: 240° (-120° to +120°)
C-axis travel: 0 to 360°

Control system: Arumatik-Mi
Spindle oil cooler
NC4+ Blue F115C probe
High-capacity ATC 40 tools (120 tool upgrade capable)
Scraper-type chip conveyor

Spindle speed: 300–30,000 rpm
Spindle taper: HSK-E40
Spindle drive: Integral drive
Spindle motor: 24.5 HP (2 min), 20 HP continuous
Spindle torque: 10.8 ft-lbs

Rapid feed X/Y: 2362 ipm
Rapid feed Z: 1969 ipm
Rapid feed A-axis: 100 min⁻¹
Rapid feed C-axis: 200 min⁻¹
Cutting feed: 1969 ipm

Tool storage capacity: 40 tools
Tool holder type: HSK-E40
Max tool diameter: 2.0 in
Max tool length: 7.9 in
Max tool weight: 4.4 lbs

Table size: Ø6.7 in
Maximum table load: 44 lbs
Max workpiece diameter: Ø9.1 in
Max workpiece height: 6.9 in (4.6 in with APC option)
Distance table surface to spindle nose: 2.0–15.0 in
Distance table center to spindle center: -6.1 to 6.9 in

Machine height: 87.7 in
Machine footprint: 47.2 × 80.5 in
Machine weight: 8300 lbs
