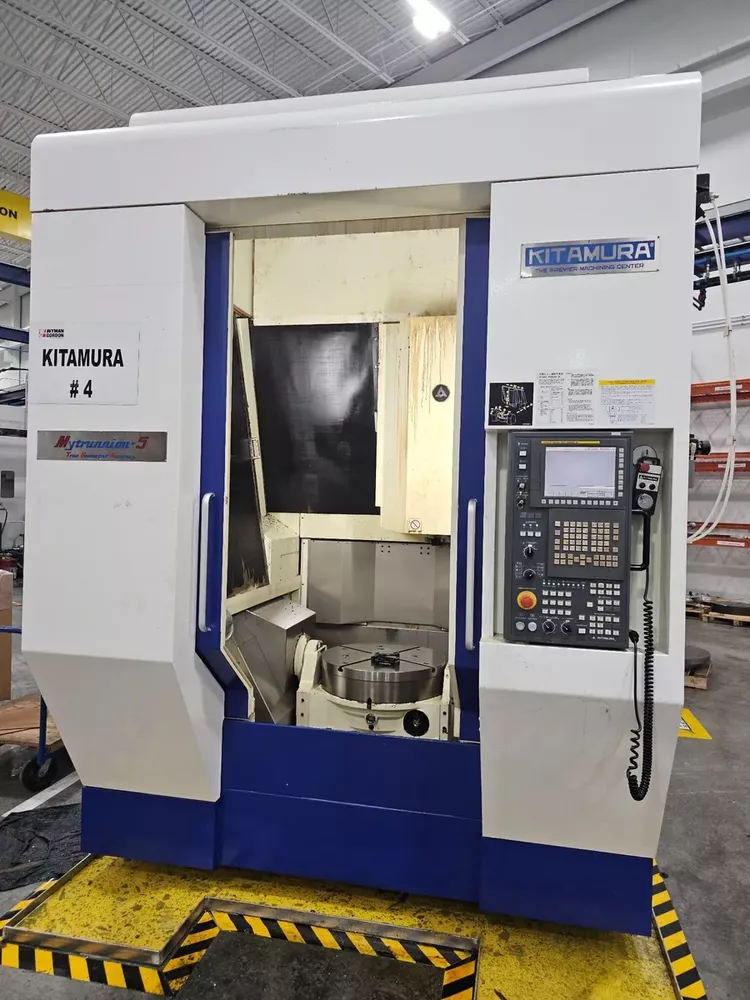

Kitamura MY-TRUNNION 5 5 Axis

X-Axis Travel: 32.3″
Y-Axis Travel: 29.3″
Z-Axis Travel: 19.6″
A Axis Tilt: 150°
C Axis Rotation: 360°
Rapid A Axis: 2000°/min
Rapid C Axis: 6000°/min
Cutting Feedrate: 984 IPM

Control: FANUC 30i Model B CNC Control
5 Axis
50 Position Automatic Tool Changer
Simultaneous 5-Axis Cutting
Coolant Through Spindle
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Flood Coolant System
Chip Conveyor
Work Light
PCMCIA Card Slot
128 MB Memory

Swing:
Bar Capacity:
Spindle Speed: 20,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT 40

Table Length: 24.8″
Table Width: 19.7″
Max Table Load: 880 lbs
T-Slots: 0.7″ × 3
Table to Spindle Nose: 3.9″ – 23.6″
Max Tool Size: 5.91″ × 11.8″
Max Tool Weight: 22 lbs
Tool Change Time: 1.7 sec
Weight: 30,000 lbs
