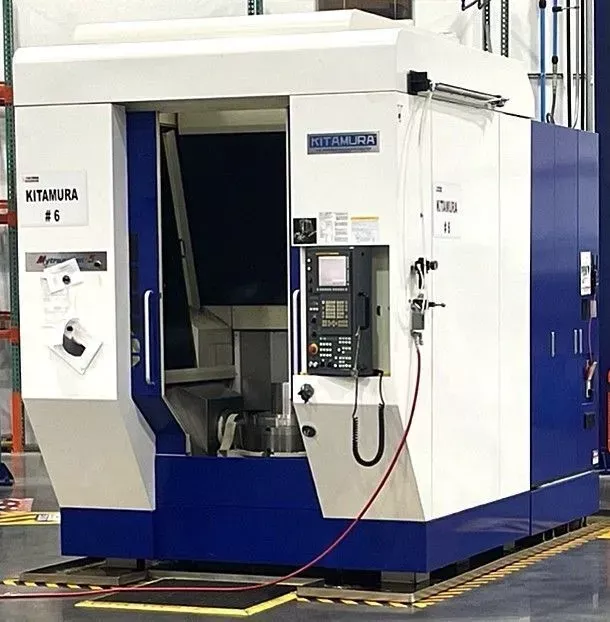

Kitamura MY-TRUNNION 5-5-AXIS 5 Axis

X-axis travel 32.3 in
Y-axis travel 29.3 in
Z-axis travel 19.6 in
A-axis tilt 150°
C-axis rotation 360°

Rapid A 2000°/min
Rapid C 6000°/min

Cutting feedrate 984 in/min
Fanuc Series 30i Model B CNC control
Simultaneous 5-axis cutting
Coolant through spindle
PCMCIA card slot
128 MB memory
Spindle chiller
Spindle orientation
Helical interpolation
Rigid tapping
Absolute incremental programming
Fast rapid traverse rate
Flood coolant with large separate coolant tank
Work light
Spindle speed 20–20,000 rpm
Spindle motor power 30 hp
Spindle taper CAT 40
Automatic 50-position tool changer
Max tool size 5.91 in × 11.8 in
Max tool weight 22 lbs
Tool change time 1.7 sec
Table length 24.8 in
Table width 19.7 in
Table to spindle nose 3.9–23.6 in
Max table load 880 lbs
T-slot 0.7 in × 3 slots
Machine weight 30,000 lbs
Chip conveyor
High precision 20,000 rpm spindle
Heavy-duty taper milling
All box way construction and rigidity
Under power for inspection
