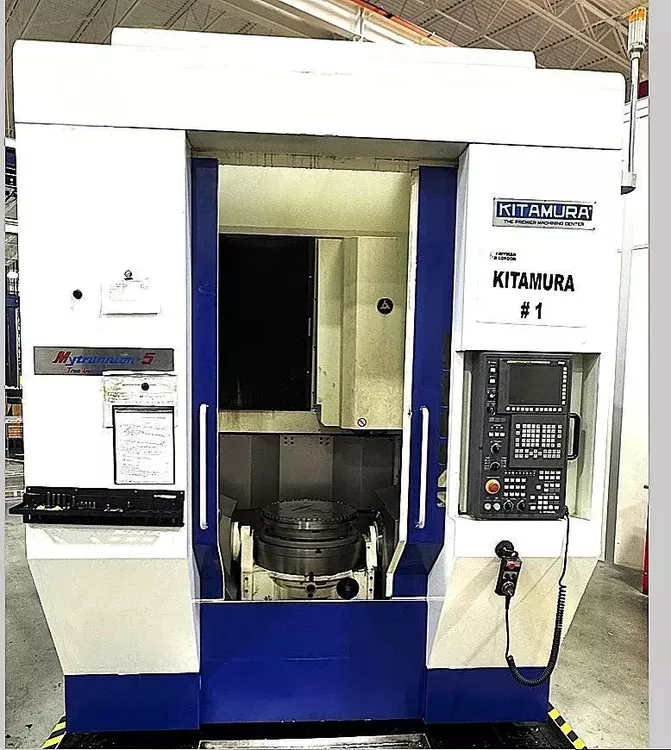

Kitamura MY-TRUNNION 5- 5-AXIS

X-Axis travel 32.3"
Y-Axis travel 29.3"
Z-Axis travel (Ram Stroke) 19.6"
A Axis 150° (Table Tilt)
C Axis 360° (Table Rotate)
FANUC Series 30i CNC Control
50 Position Automatic Tool Changer
Cat 40 Spindle Taper
Spindle Speed Range 20 ~ 20,000 RPM
Spindle motor power 30 HP
Max longitudinal cutting feed (X-Axis) 1,968"/min
Max transversal cutting feed (Y-Axis) 1,968"/min
Max vertical ram cutting feed (Z-Axis) 984"/min
Rapid A 2000 Degree Per Minute
Rapid C 6000 Degree Per Minute
Max Weight on Table 880 lbs
T-Slot 0.7" X 3 Slots
Table to Spindle Nose 3.9" – 23.6"
Max Tool Size 5.91" X 11.8"
Max Tool Weight 22 lbs
Tool Change Time 1.7 Second
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
Machine Weight 30,000 Lbs
Table Length 24.8"
Table Width 19.7"
Fully Installed and under power for inspection
