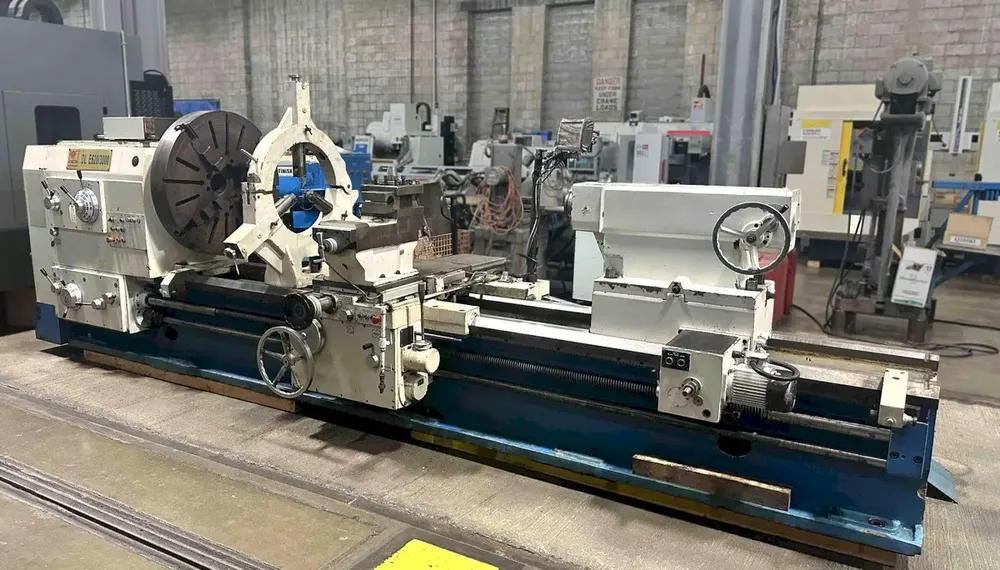

Knuth Engine Lathe 315 RPM DL E 620/3000

Max Workpiece Length: 118"
Max Turning Diameter Over Bed: 49"
Max Turning Diameter Over Carriage: 35"
Max Weight Capacity Between Centers: 13,200 lb
Max Weight Capacity on Chuck: 3,300 lb
Chuck Size: 39.5"
Spindle Bore: 5.1"
Spindle Nose: A2-15
Spindle Speeds (Right): 21 steps
Spindle Speed Range (Right): 3.15 – 315 RPM
Spindle Speeds (Left): 12 steps
Spindle Speed Range (Left): 4 – 315 RPM
X-Axis Travel: 24.8"
Z-Axis Travel: 110"
Z1-Axis Travel: 12"
Swing Range Top Slide: ±180°
X-Axis Rapid Traverse: 73.62 in/min
Z-Axis Rapid Traverse: 147.24 in/min
Main Motor Power: 29.5 hp
Threads (Inch): 5 – 60 TPI
Threads (Metric): 1 – 120 mm
Tailstock Quill Diameter: 6"
Tailstock Quill Taper: Metric 80
Tailstock Quill Stroke: 12"
Tailstock Traverse Adjustment: ±0.1"
Electrics: 440/3/60
Machine Dimensions: 241" x 76" x 76"
Weight: 28,000 lbs
Bed Width: 30"
Coolant System: Included
Chip Guards: Included
Chuck Guard: Included
Steady Rest: Included
Follow Rest: Included
DRO: 3-axis position indicator
Toolpost: 4-sided quick-change toolpost with boring bar holder
Lubrication: Central lubrication system
Drive: Power rapid traverse X & Z axis
Tailstock: Independent motor positioning
Condition: Excellent
