Knuth Vertical 1600 rpm SINUS 330/2000

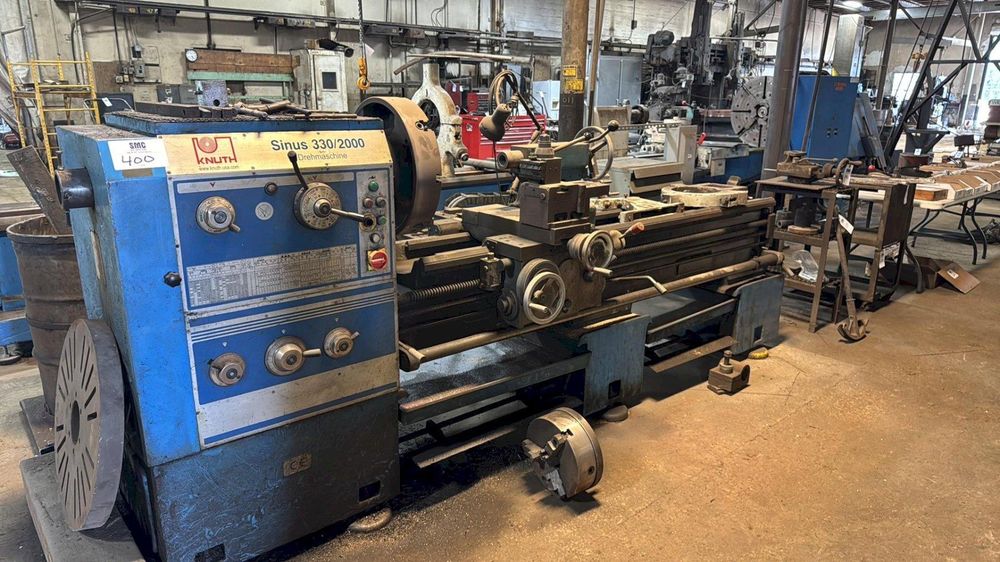

KNUTH SINUS 330/2000
2005

Workpiece length (max.): 79 in
Turning diameter over bed: 26 in
Turning diameter over support: 17 in
Turning diameter without gap bridge: 35 in
Gap bridge length: 13 in
Bed width: 16 in
Travel X-axis: 14.5 in
Travel Z1-axis: 9 in
Swing range of top slide: 45°
Spindle speed: 25 rpm - 1600 rpm
Spindle bore: 4.1 in
Spindle mount: D1-8
Spindle taper: 5 MT
Rapid feed X-axis: 78.74 in/min
Rapid feed Z-axis: 157.48 in/min
Feed X-axis: 0.00087 in/R - 0.02913 in/R
Feed Z-axis: 0.00173 in/R - 0.05827 in/R
Threading metric: 0.45 mm - 120 mm
Threading diametric: 0.88 DP - 160 DP
Threading module: 0.25 mm - 60 mm
Threading Whitworth: (54) 7/16 - 80 TPI
Tailstock quill diameter: 4 in
Tailstock taper: 5 MT
Tailstock quill stroke: 9 in
Tailstock traverse adjustment: ± 125 in
Motor rating main drive: 10.1 Hp
Overall dimensions (L x W x H): 147 in x 49 in x 63 in
Weight: 6380 lbs

19.5" 4-Jaw Chuck
12" 3-Jaw Chuck
Tool Post
Tailstock
Taper Attachment
Steady Rest
Follow Rest
Splash Guard
24.75" Faceplate
Inch & Metric Threading
