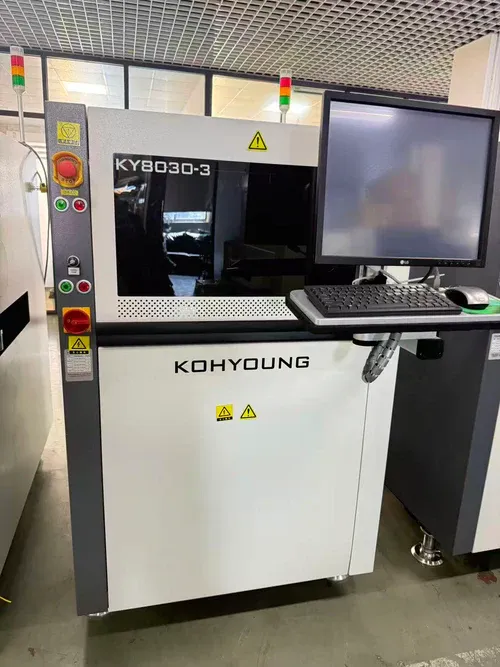

Koh Young KY8030-3(HS) 3D Solder Paste Inspection System

High-Performance 3D Solder Paste Inspection System
with KSMART SPC Integration

The Koh Young KY8030-3(HS) is a high-performance
3D SPI system trusted by leading electronics manufacturers
worldwide for its unmatched accuracy and throughput.
This 2021 vintage unit is in excellent condition,
freshly calibrated in April 2026, and will undergo a
full CPK calibration test prior to shipment to
verify it is performing to specification.
Running on KSMART software with an active SPC license,
this machine is ready to slot directly into your SMT line.

Key Highlights
• High-Speed 3D Solder Paste Inspection System
• 8MP High-Resolution Optical Imaging System
• 10μm Pixel Resolution for Precision Measurement
• Ultra-Fast Inspection Speed (0.33 sec/FOV)
• Advanced 3D Height, Volume & Area Analysis
• KSMART Software Platform with SPC Integration
• Real-Time Statistical Process Control (SPC) Capability
• Full CPK Calibration Verification Before Shipment
• Inline SMT Production Ready Configuration
• Trusted Koh Young Global Inspection Platform

Technical Overview
• Manufacturer: Koh Young Technology
• Model: KY8030-3(HS)
• Year: 2021
• Machine Type: 3D Solder Paste Inspection (SPI) System
• Inspection Speed: 23.8 cm2/sec (0.33 sec/FOV)
• Camera Resolution: 8 Megapixels
• Pixel Resolution: 10 μm
• Maximum Inspection Height: 450 μm / 17.7 mils
• Software Platform: KSMART
• Operating System: Windows 10
• License Package: SPC (Statistical Process Control) Included
• Calibration Status: April 2026

Inspection Technology & Capabilities
• True 3D Solder Paste Measurement System
• Accurate Volume, Height & Area Inspection
• High-Speed Defect Detection in SMT Lines
• Advanced Shape and Offset Analysis
• Real-Time SPC Monitoring via KSMART
• High-Precision Measurement for Fine-Pitch Components
• Process Stability and Yield Optimization Support

Software & Control System
• KSMART Inspection Software Platform
• Windows 10 Industrial Operating System
• Integrated SPC (Statistical Process Control) License
• Real-Time Data Collection and Analysis
• Production Traceability and Reporting Tools
• Industrial Workstation Integration Included

Included Equipment
• Koh Young KY8030-3(HS) SPI System
• KSMART Software with Active SPC License
• Dell Industrial Workstation
• APC Back-UPS Power Protection Unit
• LG Monitor with Keyboard & Mouse Setup
• Full Pre-Shipment Calibration Documentation
• CPK Calibration Test Prior to Shipment

Condition & Certification
• Excellent Cosmetic and Mechanical Condition
• Clean and Fully Functional Optical System
• Verified Motion and Electronics Integrity
• Calibrated April 2026
• Full CPK Calibration Test Included Before Shipment
• Ready for Immediate SMT Line Deployment
• Fully Operational Inspection Platform

Production Value
• Improves SMT Process Control Accuracy
• Detects Printing Defects Before Placement
• Reduces Rework and Production Scrap
• Enhances First-Pass Yield
• Strengthens Process Stability via SPC Monitoring
• Supports High-Volume, High-Precision Manufacturing

Ideal Applications
• SMT Electronics Manufacturing
• Semiconductor and PCB Assembly Lines
• EMS (Electronics Manufacturing Services)
• Automotive Electronics Production
• Industrial & Power Electronics
• High-Reliability Manufacturing Environments
• Fine-Pitch and High-Density PCB Inspection
