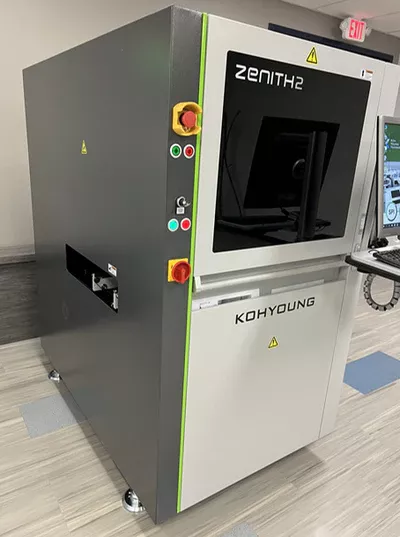

Koh Young Zenith 2 Advanced 3D AOI Inspection

DOM: 12/2019
Zenith 2 (8Way) SL Single Lane, KOH YOUNG
3D Automated Optical Inspection System

Measurement Capabilities:
3D Inspection: Missing, Offset, Billboarding, Tombstone, Coplanarity, Solder Joint (insufficient, excessive), Lifted Leads, Bridging, "No-Pops" Polarity
2D Inspection: "Wrong Part" using Optical Character Verification (OCV), Polarity

Optical Measurement Unit:
Koh Young proprietary light projection unit for shadow free effect
8way Projection Light Source: strobe LEDs, IR-RwB lights
Vision Algorithm: 3D/PSMI (Phase Shifting Moire Interferometry)
8M B/W Digital Camera, 15um X/Y-resolution
(20um configurable from factory)
1um Z-resolution, 25mm height measurement

Software:
3D Inspection GUI Software, Gerber, conversion software
Camera Barcode Reading License
Operating System: Microsoft Windows 10
Ultimate 64bit

Specification:
Supplies: 220 VAC, 50/60Hz Single Phase,
Compressed Air 5kgf/cm2
Conveyor: Single L
Max. PCB Size: 510x510mm (20Lx20L) Min.
PCB Size: 50x50mm (1.97Lx1.97L)
PCB Thickness(mm) 0.4~5, Max. PCB Weight
