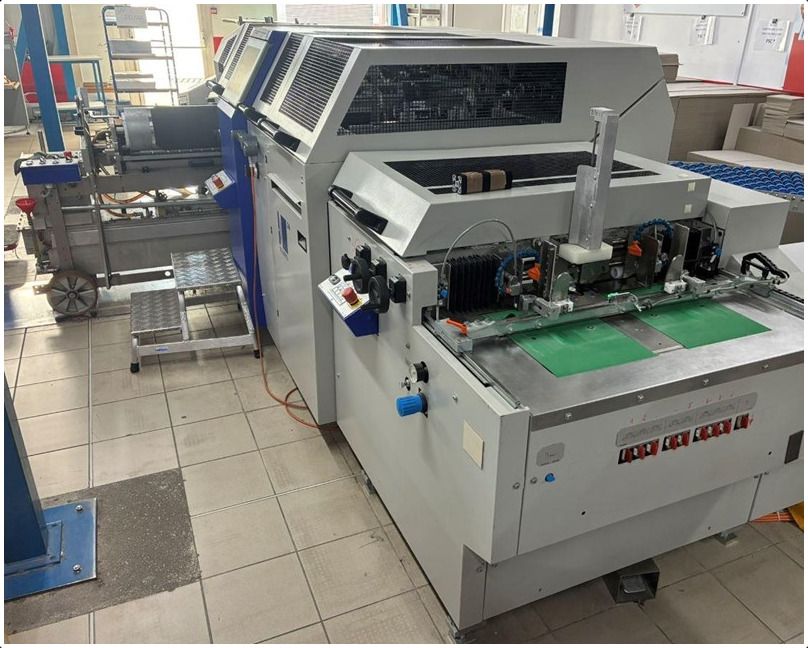

Kolbus DA 270

Cover size max.: 670x390 mm
Cover size min.: 205x140 mm
Cloth height: 130 - 428 mm
Cloth width: 223 - 708 mm
Cardboard thickness: 1 to 4 mm
Cardboard width: 95 - 328 mm
Cardboard height: 140 - 390 mm
Joint width: 4- to 15 mm
Spine width: 14- to 120 mm
Turn in width closed: 8 - to 15 mm
Centre strip roll thickness / width: 03, to 0,6 mm / 6- to 90 mm
Mechanical speed: 65 cycles/min.

‘Co-pilot’ system with touch screen for automatic size setting, menu guided make-ready and fault indication.
Twin board magazine feeders
Special board centre strip cutting device
Magazine feeder of pre-cut cloth with miss control
Mobile hot-melt gluing unit with pre-melter
Heated glue application roller with scraper rollerCloth cylinder with grippers & exchangeable plates for rubber pad
Counter shingle delivery with roller conveyor
External glue application adjustment
Glue viscosity device for automatic water supply control
Pressing roller for crease-free cover to board application
Single case request for operator set-up
Variable DC drive
Automatic lubrication
Including accessories & manuals.
N.B. Compressed air and water supplies to client’s account.

*Accessories:
Board centre-strip cutting device for cutting rigid centre board strips to width,
with possible width variance from product to product for digital book production.
° Board sheet thickness max. 2 mm
° Width max. 1,500 mm | height min. 140 mm | max. 390 mm
° Board centre-strip max. 7 mm | max. 60 mm
Kolbus ECK standalone corner cutter to work with case maker.
