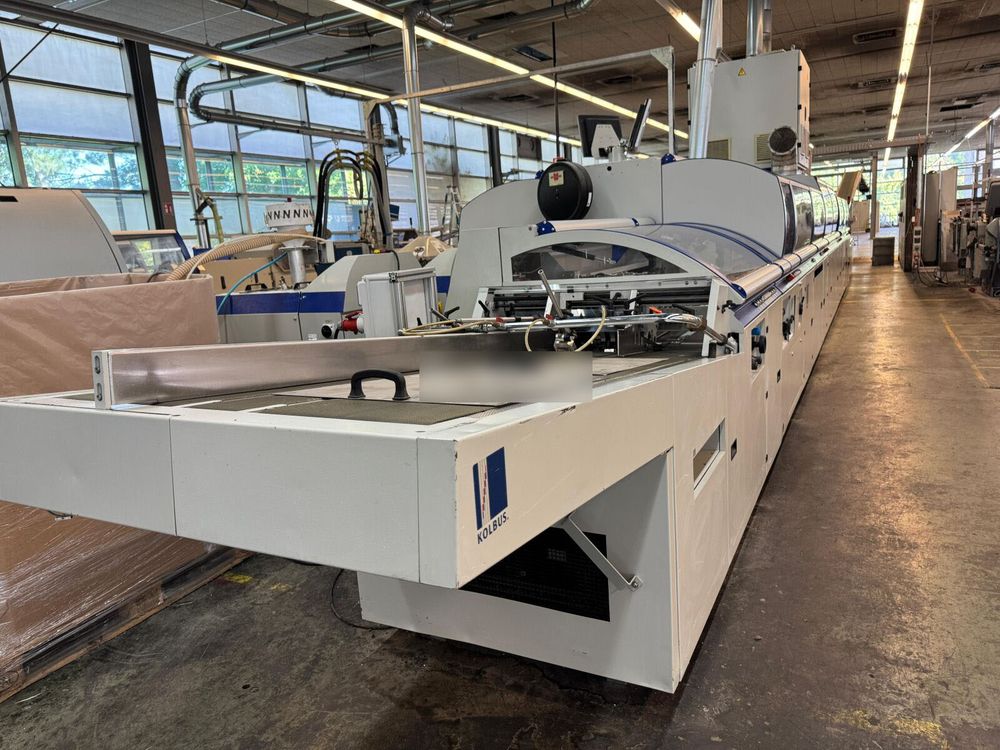

Kolbus Publica KM 411.B

Gathering Machine:
Type: ZU 841.B
Gathering stations: 24x
Year: 2007
Hand feeding station
ASIR II
Book Block Feeder: Solema Fastbook
ATC (automatic sheet thickness control)
optoelectronic signature recognition system
extended jogger element
Reject Unit: AS 841
Streamfeeder: 24x Kolbus STA 840
Crane System: Yes
Aircenter
Touchscreen

Technical Details:
Size max: 320 x 510 mm
Size min: 105 x 105 mm
Pile height max: 250 mm
Mechanical speed max: 12,000 cycles/h

Perfect Binder:
Type: Kolbus KM 411.B
Number of clamps: 30x
Book Block Feeder
Endsheet: VA 422
Milling station
2. Milling station
equalize milling station: 2x
Gauzing
rill station for 4 times rill
Cover feeder: Stream Cover Feeder
Nipping and Pressing station
2nd Nipping and Pressing station
High Frequncy Drying: Yes

Spine Gluing:
Base for 2 Spine Gluing Units
Infrared intermediate Drying between both bases
Hotmelt: 1 Unit with Premelter LH 375.B (interchangeable)
PUR: 1 Unit

Side Gluing:
Hotmelt: 1 Unit with Premelter LH 375.A (interchangeable)

Drying Conveyor:
conveyor belts
length of the drying conveyor: around 100m
Conveyor deviation Type: Kolbus TS.ZD
Conveyor deviation routes: To the left: Wagner Stacker (2003) ; Straight: Kolbus TR 160 Splitting Saw

Splitting Saw:
Type: Kolbus TR 160
Year: 2003
Conveyor deviation after splitting saw
Conveyor deviation routes: to the left: Kolbus HD 153.M Three knife trimmer; Straight: MBT Masuri STD Stacker

Three knife trimmer:
Type: Kolbus HD 153.M
Year: 2011
Control panel
Control panel: Copilotsystem with "Touchscreen"

Technical Details:
Size max (cutted)): 300 x 420 x 80 mm
Size min (cutted): 100 x 120 x 1,5 mm
Size max (uncutted): 310 x 430 x 80 mm
Mechanical speed max: 6,600 cuts/h

Stacker:
Type: Kolbus XRS 130 after Three-Knife-Trimmer Kolbus HD 153.M
Year: 2007

Delivery and Peripherals:
Blocking Unit: Kolbus VB 120

Technical Details:
Mechanical Speed: 12,000 cycles/h
Max Block format range (width x height x thickness): 320 x 510 x 70 mm
Min. Block format range (width x height x thickness): 100 x 105 x 3 mm
