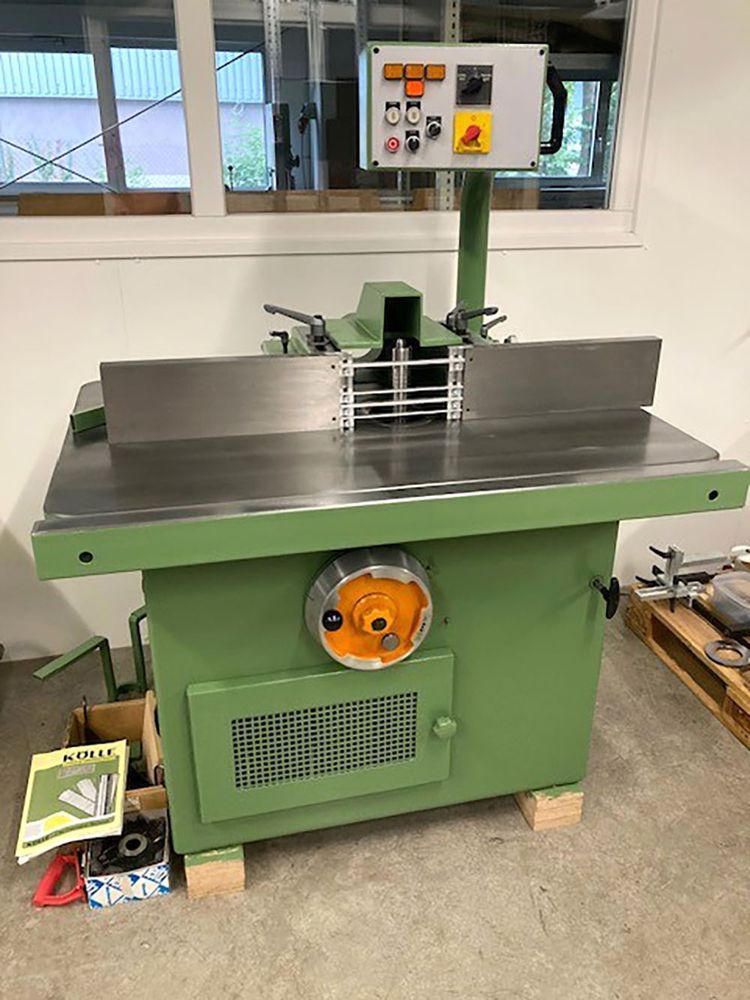

Kolle F 50 Table Milling Machine

400 V, 4.7/5.7 kW, motor brake
Control panel above the table, fixed spindle, left/right rotation,
Speeds 3000/4000/5000/6000/8000/10000 rpm
Aditional 1500 rpm.
For sanding
Table size 1200 x 800 mm, extendable table support
Table height 850 mm,
Distance from the front edge of the table to the center of the milling spindle 400 mm
Diameter of the table openings with rings selectable D 68 / 92 / 150 / 195 / 270 / 375 mm
Replaceable spindle MK 5, D 30 mm, milling spindle adjustment range 125 mm
Milling stop with fine adjustment rotatable on the table, metal stop jaws
Meteor safety package consisting of aluminum bars, fillet board, and wooden splinter guards,
Socket with fuses for the feeder, extraction nozzle D 120 + D 100 mm
Dimensions L x W x H 1200 x 900 x 1550 mm, weight 700 kg.
