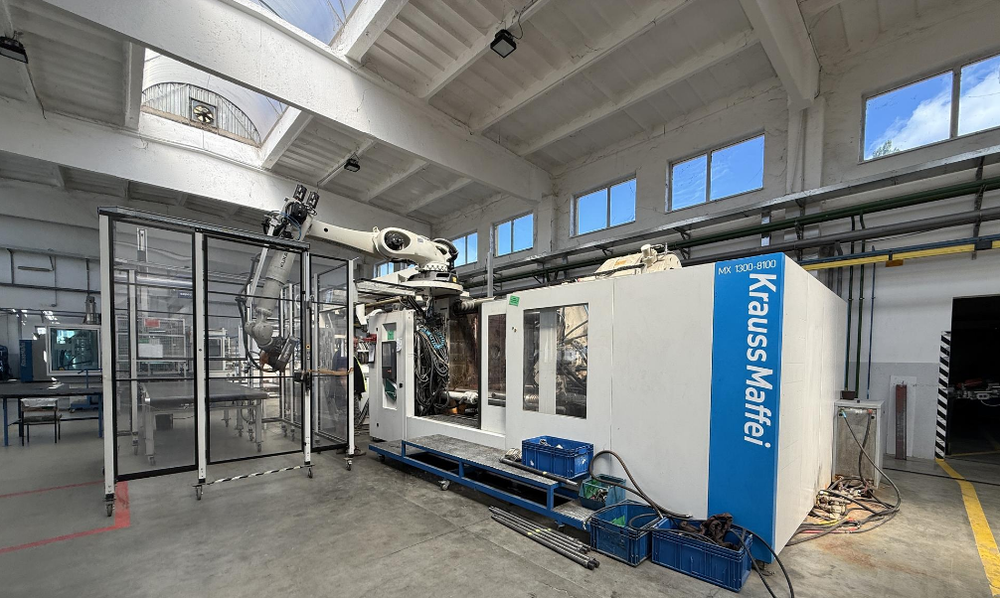

Krauss Maffei 1300-8100MX 1300 T

Working hours 26000

KraussMaffei KM 1300 MX – SP 8100
Screw Ø105 mm Clamping Unit
Clamping force: 13,000 kN / 1,300 t
Mold opening force: 910 kN
Moving platen force, opening/closing: 159 / 153 kN
Platen dimensions: 2,150 × 1,910 mm
Distance between tie bars (H × V): 1,550 × 1,250 mm
Opening stroke: 2,350 mm
Mold height min./max.: 700 / 1,400 mm
Maximum daylight: 3,050 mm
Ejector stroke: 350 mm
Ejector force forward/backward: 250 / 125 kN
Optional increased mold height min./max.: 950 / 1,650 mm
Daylight with increased mold height: 3,300 mm

Injection Unit – SP 8100
Screw diameter: 105 mm
L/D ratio: 23
Maximum injection pressure: 1,778 bar
Stroke volume: 4,546 cm3
Shot weight PS: 4,137 g
Injection flow rate: 805 cm3/s
Screw speed nominal/max.: 126 / 159 rpm
Plasticizing rate PS at nominal speed: 147 g/s
Plasticizing rate PE at nominal speed: 116 g/s
Plasticizing rate PS at maximum speed: 187 g/s
Plasticizing rate PE at maximum speed: 147 g/s
Nozzle contact force: 166 kN

Electro-Hydraulic Equipment
Pump motor rated power: 110 kW
Installed heating capacity: 59 kW
Barrel heating/control zones: 7
Dry cycle rate according to Euromap 6: 761 cycles/h
Dry cycle time according to Euromap 6: 4.7 s
Oil tank capacity: 1,500 l

Dimensions & Weight
Net weight incl. control cabinet: 77 t
Dimensions (L × W × H): 12.09 × 3.66 × 2.67 m
Maximum mold weight: 29,000 kg

With Electric Screw Drive
Screw drive power: 117 kW
Screw speed nominal/max.: 123 / 193 rpm
Plasticizing rate PS nominal: 144 g/s
Plasticizing rate PE nominal: 114 g/s
Plasticizing rate PS maximum: 226 g/s
Plasticizing rate PE maximum: 178 g/s

With Accumulator (ZE)
Injection flow rate: 1,732 cm3/s

Equipment:
Removable tie bar (rectable tie bar)
Euromap 67 for robot
48 Hotrunner controllers
8 pneumatic cascades
6 hydraulic cascades
2+2 cores

Material used: PP, PC
