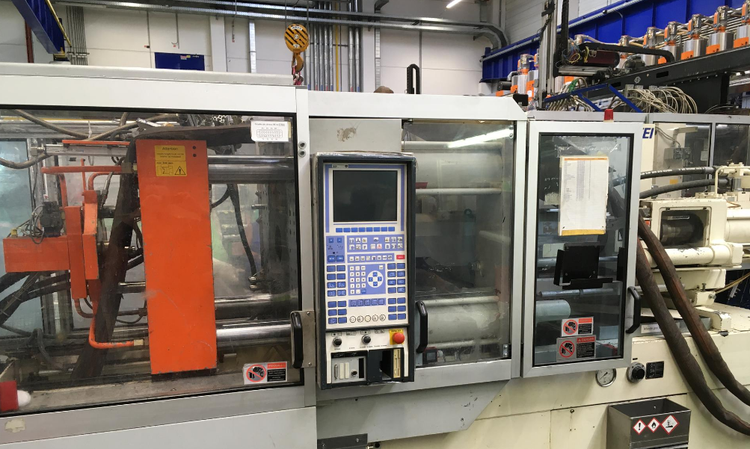

Krauss Maffei KM 150-700/C2 150 T
Ref :
2774753-6-AW
Condition :
Used
Manufacturer :
Krauss Maffei
Model :
KM 150-700/C2
Capacity :
150 T
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Clamping Unit
Clamping force: 1500 kN
Platen size (h × v): 780 × 790 mm
Tool opening stroke: 600 mm
Clearance between tie bars (h × v): 500 × 500 mm
Minimum mould installation height: 300 mm
Ejector stroke: 150 mm
Hot runner – number of zones used: 12
Control of pneumatic valve pins: 1 pc
Injection Unit
Screw diameter: 45 mm
Injection pressure: 2336 bar
Maximum shot volume: 305 cm³
Maximum shot weight (PS): 278 g
Cores: 2× hydraulic circuit (BAP)
Screw L/D ratio: 22
