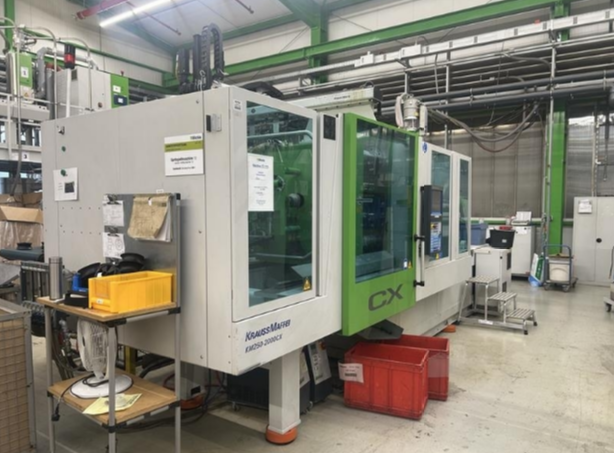

Krauss Maffei KM 250 – 2000 CX 250 T

Working hours 62000 h
Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 2500 kN
Mould opening force, max. 169 kN
Travel force movable platen opening 86 kN
Travel force movable platen closing 68 kN
Size of mould platens (h x v) 995 x 1050 mm
Distance between tie bars (h x v) 630 x 630 mm
Mould opening stroke 820 mm
Mould height min 330 mm
Max. daylight 1150 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58/28 kN

Injection unit:
Screw diameter 70 mm
Ls/D ratio 20
Injection pressure 1877 bar
Stroke volume 1077 ccm
Shot weight (PS) 980 gr.
Injection rate 385 ccm/s
Screw speed 220 1/min
Plasticising rate max. 76 g/s
Nozzle pressure 82 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 55 kW
Installed heating capacity 29 kW
Adjustable barrel heating zones 6
Oil Reservoir capacity 720 ltr.

Dimensions and weights:
Dimensions of the machine ca. 6,50 x 2,20 x 2,40 m
Total machine weight 14500 kg
Max. mould weight 3430 kg

Accessories:
- Anti vibration pads
- Krauss Maffei robot
