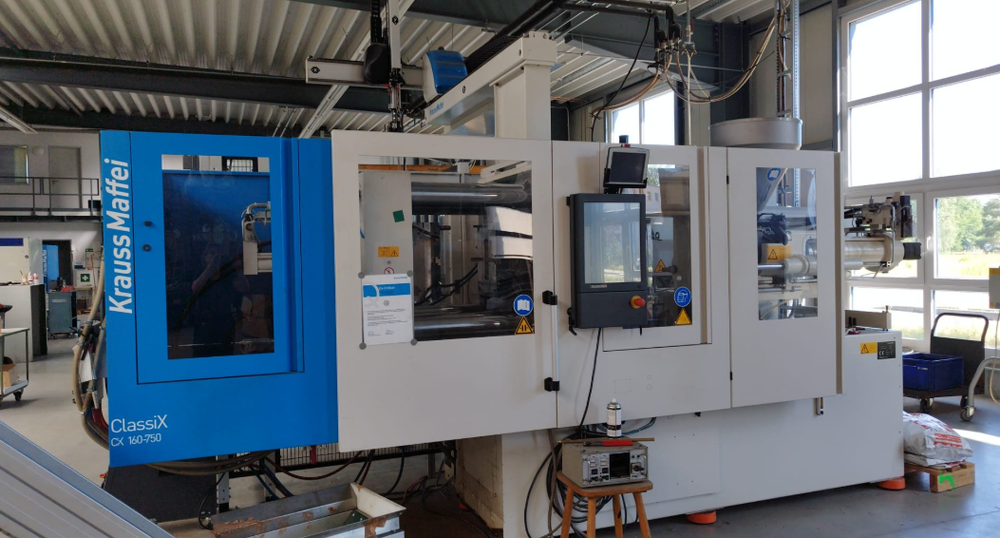

Krauss Maffei KM 160-750 CX 160 T

Control: MC6
Year of manufacture: 2015
Operating hours: 7500 h

Technical data, clamping side
Clamping force: 1600 kN
Timber dimensions h x v: 520 x 520 mm
Plate size h x v: 820 x 845 mm
Minimum installation height: 300 mm
Maximum plate spacing: 950 mm
Opening stroke: 650 mm
Ejector stroke: 150 mm
Ejector force: 43 kN
Mold weight: 1850 kg

Technical data, injection side
Screw diameter: 45 mm
Stroke volume: 318 cc
Injection pressure: 2336 bar
Screw length: 22 l/d
Screw speed: 265 rpm
Plasticizing flow: 29 g/s PS
Injection flow to atmosphere: 14 g/s PS
Number of Heating zones: 6

Dimensions & Weight
Machine dimensions L x W x H: 4.3m x 1.6m x 2m
Total weight: 8200 kg

Equipment
On-screen text: German
On-screen text: English
On-screen text: Polish
CEE socket 16A
CEE socket 32A
Hydraulic core pull (2x)
Leveling elements
Schuko socket 10A

Handling specifications
Machine type: Linear
Manufacturer: Krauss Maffei
Control: LRX 50
Year of manufacture: 2015
Handling weight: 5 kg
X-axis: 620 mm
Y-axis: 1200 mm
Z-axis: 1500 mm
Rotation axis C: 90°
On-screen text: German and English
