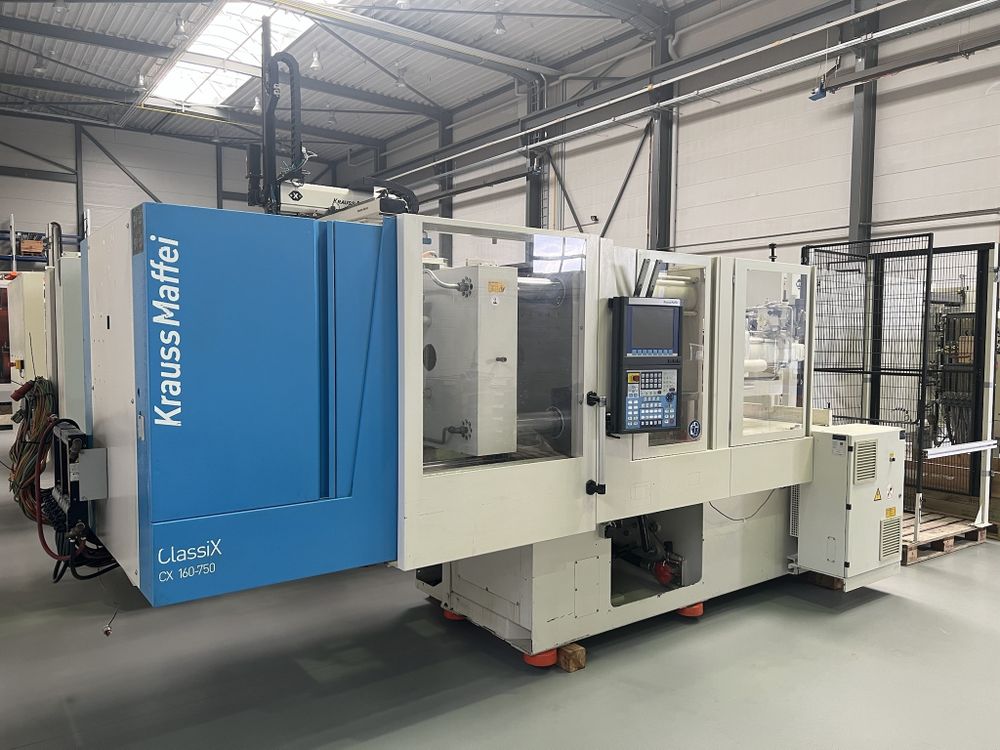

Krauss Maffei KM 160 – 750 CX 160 T

Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 1600 kN
Mould opening force, max. 87 kN
Travel force movable platen opening 45 kN
Travel force movable platen closing 38 kN
Size of mould platens (h x v) 820 x 845 mm
Distance between tie bars (h x v) 520 x 520 mm
Mould opening stroke 650 mm
Mould height min 300 mm
Max. daylight 950 mm
Hydraulic ejector - stroke 150 mm
Ejector force 23 kN

Injection unit:
Screw diameter 50 mm
Ls/D ratio 20
Injection pressure 1892 bar
Stroke volume 393 ccm
Shot weight (PS) 358 gr.
Injection rate 177 ccm/s
Screw speed 265 1/min
Plasticising rate max. 36,2 g/s
Nozzle pressure 50 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 22 kW
Installed heating capacity 16 kW
Adjustable barrel heating zones 5
Reservoir capacity 489 ltr.

Dimensions and weights:
Dimensions of the machine ca. 5,50 x 2,00 x 2,20 m
Total machine weight 8200 kg
Max. mould weight 1862 kg

Accessories:
- Anti vibration pads
- Servomotor

Additional Options:
- 1 x air valve
- 2 x core pulls on movable plate
- 2 x core pulls on fix plate
- Interface for robot according to Euromap 67
- 8 x hotrunner controller

This injection moulding machine Krauss Maffei KM 160 - 750 CX MC5 is
tested and in working condition
