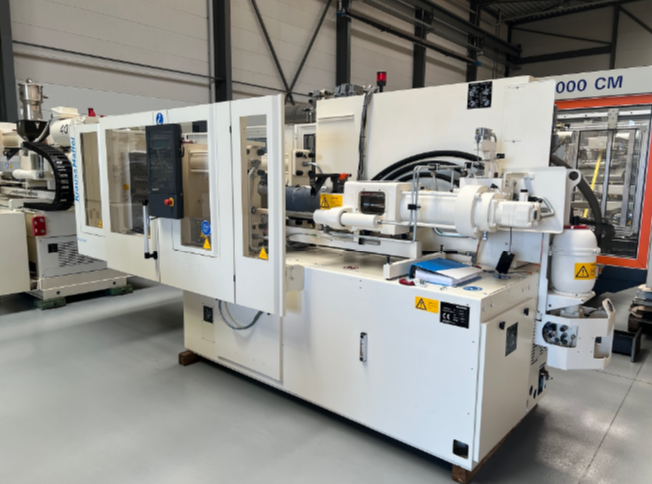

Krauss Maffei KM 80 - 380 CX 80 T

Used injection moulding machine Krauss Maffei KM 80 - 380 CX MC6

Offer-Details:
Manufacturer Krauss Maffei
Type of machine KM 80 - 380 CX
Year 2015
Working hours 22000 h
Controlversion MC 6
Screentext German

Clamping unit:
Clamping force 800 kN
Mould opening force, max. 55,3 kN
Travel force movable platen opening 31,1 kN
Travel force movable platen closing 22 kN
Size of mould platens (h x v) 670 x 670 mm
Distance between tie bars (h x v) 420 x 420 mm
Mould opening stroke 500 mm
Mould height min 250 mm
Max. daylight 750 mm
Hydraulic ejector - stroke 150 mm
Ejector force 23 kN

Injection unit:
Screw diameter 40 mm
Ls/D ratio 20
Injection pressure 1860 bar
Stroke volume 201 ccm
Shot weight (PS) 182,9 gr.
Injection rate 126 ccm/s
Screw speed 295 1/min
Plasticising rate max. 26 g/s
Nozzle pressure 50 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 15 kW
Installed heating capacity 11 kW
Adjustable barrel heating zones 5
Oil Reservoir capacity 400 ltr.

Dimensions and weights:
Dimensions of the machine ca. 4,50 x 2,00 x 2,20 m
Total machine weight 3900 kg
Max. mould weight 995 kg

Accessories:
- Anti vibration pads
- Anti vibration pads
- 4-fold water flower

Additional Options:
- 1 x Air valve
- 2 x hydr. core pulls
- Accumulator
- APC
- Robot interface according to Euromap 67
- 4 x hot runner controller
