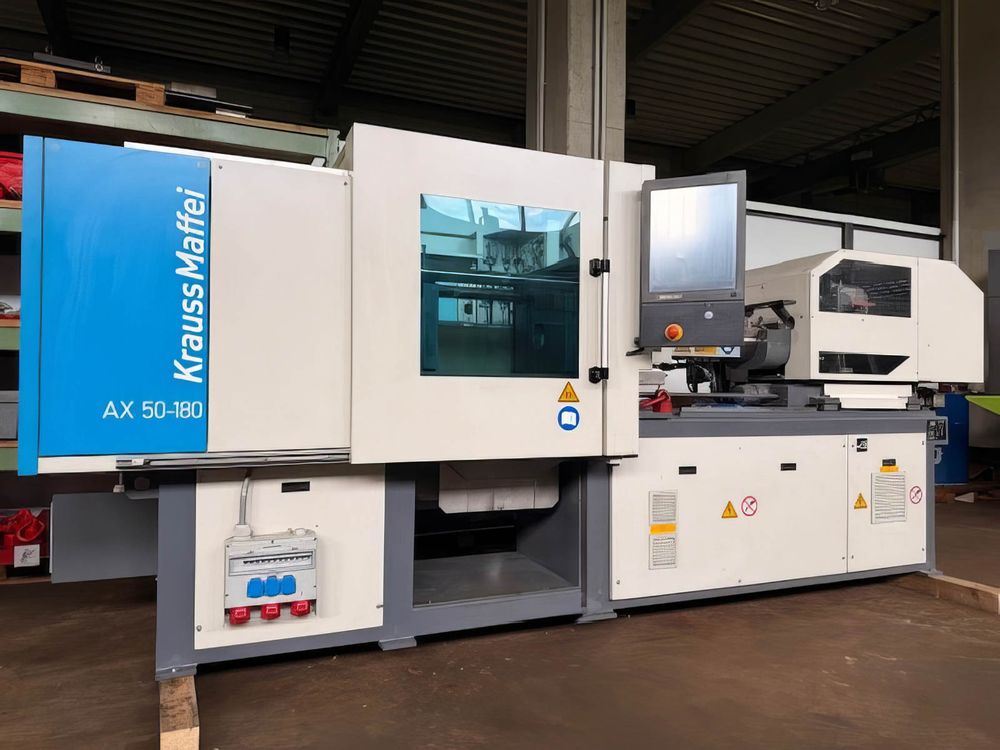

Krauss Maffei KM50-180AX 50 T
Ref :
2764328-6-GO
Condition :
Used
Manufacturer :
Krauss Maffei
Model :
KM50-180AX
Capacity :
50 T
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 500 kN
Air Valves 2
Control MC5
Core pullers 2
Dimensions (long x wide x high) 4.400 x 1.600 x 1.900 mm
Distance between tie-bars (h x v) 410 x 360 mm
Heating zones 10
Injection pressure 2.500 bar
Injection volume 59 cm³
Mould height max 470 mm
Mould height min 150 mm
Mould opening stroke max 300 mm
Operating hours 29.000
Platen size (h x v) 510 x 460 mm
Power: installed max 8,1 kW
Screw diameter 25 mm
Shot weight max 54 g
Weight 3.700 kg
