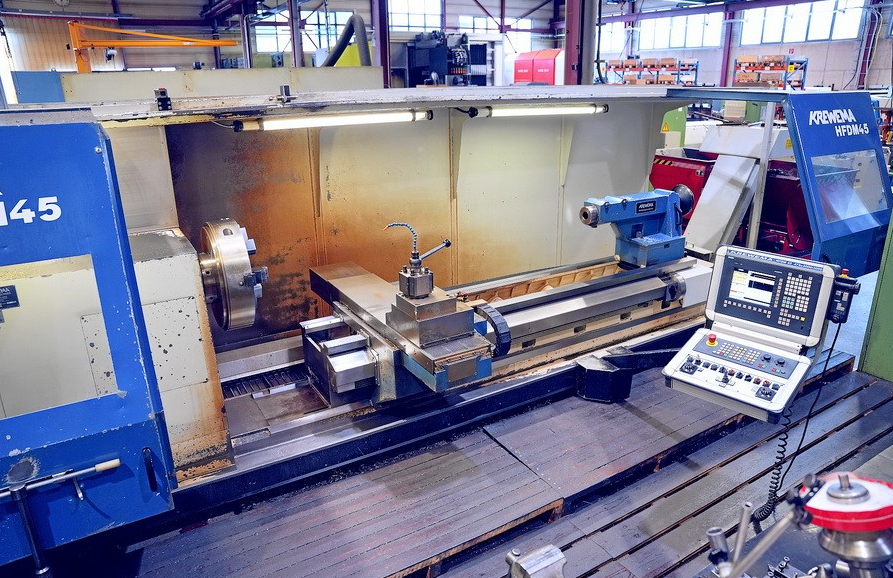

Krewema Control 810D / Manual Turn Siemens 1,100 rpm HFDM 45 475 x 2000/3000 2 Axis

X-axis travel 850 mm
Z-axis travel 2,100 mm
Centre height 475 mm
Turning diameter over bed 935 mm
Turning diameter over face-slide 600 mm
Maximum turning diameter over bed 1,600 mm
Turning length 2,000 / 3,000 mm
Maximum workpiece weight between centers 6,000 kg
Control 810D / Manual Turn Siemens
Main spindle speed 10 – 1,100 rpm
Main spindle transmission ratio 4
Main spindle power 37 kW
Maximum torque 8,000 Nm
Spindle diameter in front bearing 190 mm
Spindle bore 155 mm
Tool mount Parat 4 pos. RD 4
Number of cross-slides 1
Tailstock quill stroke 300 mm
Tailstock quill diameter 140 mm
Tailstock capture MK 6
Rapid feed Z-axis 6 m/min
Machine weight 10,500 kg
Machine dimensions 8,000 x 2,300 x 4,000 mm
Chip conveyor Mayfran
Three-jaw chuck Röhm Duro 630 mm
Coolant system
