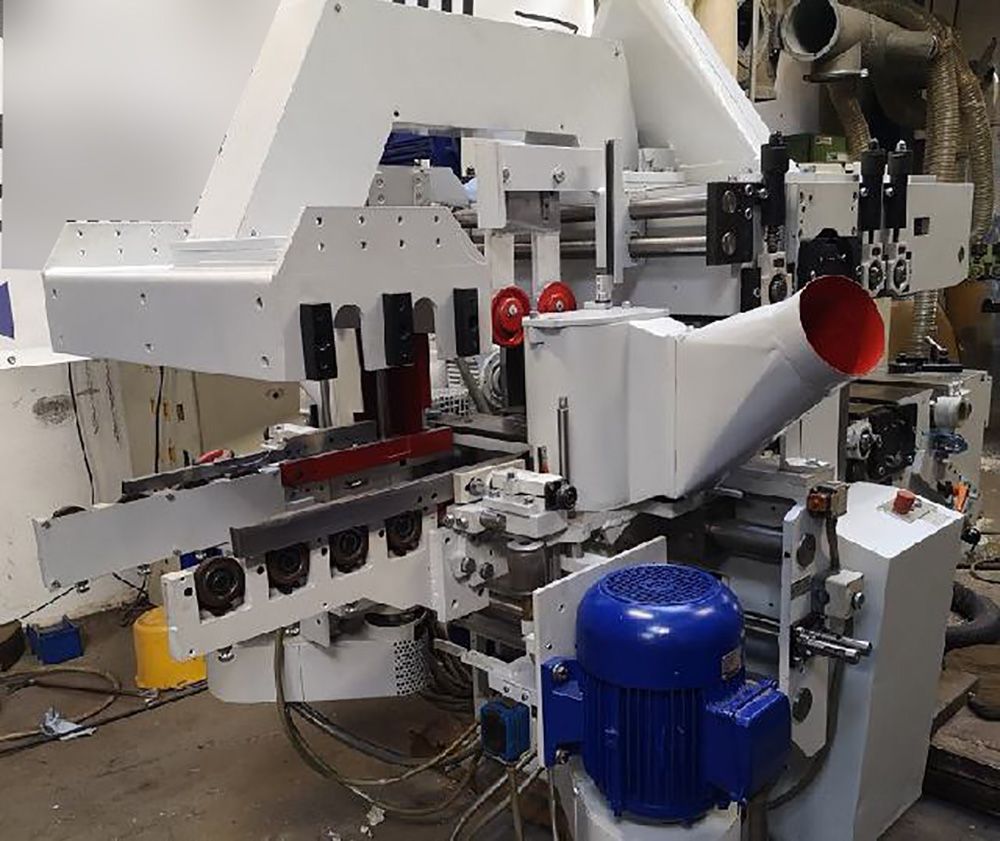

Kupfermühle Vuin-plus

Working width: 600 mm
Working height: 250 mm
Working height 4-side: 200 mm
Number of spindles: 44
Spindle configuration: b-t-r+l-b
Spindle diameter: X-X-40-40-40 mm
Spindle rotation speed: 5400 U/min
Outboard bearings for spindle: 1-2
Motor power: 11-15-11-11-11 kW
Working width adjustments: Digital adjustments
Working height adjustments: Digital adjustments
Feed speed: 4 - 30 m/min
Feed motor: 4 kW
Driven bed rollers: 3
Infeed rollers: 4
Outfeed rollers: 2
Tools horizontal: Z4
Tools vertical: Z4
Constant table height: ca. 800 mm
Champfering spindles: 2x1,1 KW
Chip removal bottom: 12 mm
Chip removal top: 15 mm
Extraction socket diameter: 160-160-160-160-120 mm
Weight: 4200 kg
Dimensions: 3500x1800x1800 mm
Voltage: 400V
