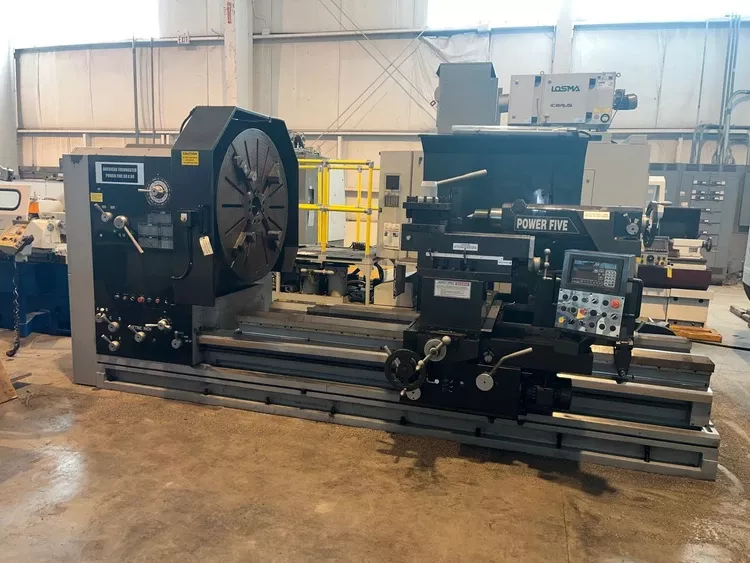

Lagun Engine Lathe 700 rpm AMERICAN TURNMASTER POWER FIVE

Technical data
Swing over bed: 60.125 in
Swing through gap: 80.25 in
Swing over cross slide: 47.25 in
Distance between centers: 80 in
Length of gap: 23.75 in
Spindle bore: 6.02 in
Spindle speed range: 7–700 rpm
Number of spindle speeds: 18
Longitudinal travel: 82 in
Cross slide travel: 31.5 in
Top slide travel: 15.75 in
Longitudinal feed range: 0.0018–0.1 IPR
Cross feed range: 0.0009–0.05 IPR
Longitudinal rapid traverse: 80 IPM
Cross rapid traverse: 50 IPM
Leadscrew pitch: 2 TPI
Inch threading range: 0.5–28 TPI
Metric threading range: 1–56 mm
Tailstock quill diameter: 5.75 in
Tailstock quill travel: 7.87 in
Tailstock taper: MT 6
Main motor power: 30 hp
Overall length: 14 ft
Overall width: 7 ft
Overall height: 7 ft
Machine weight: approx. 31,700 lb

Features / options / equipment
Hollow-spindle gap-bed engine lathe
Inch/metric threading
Newall digital readouts
4-jaw manual chuck 60 in
Through-spindle chuck configuration
Live center in tailstock
Additional live center
Extra tool post
