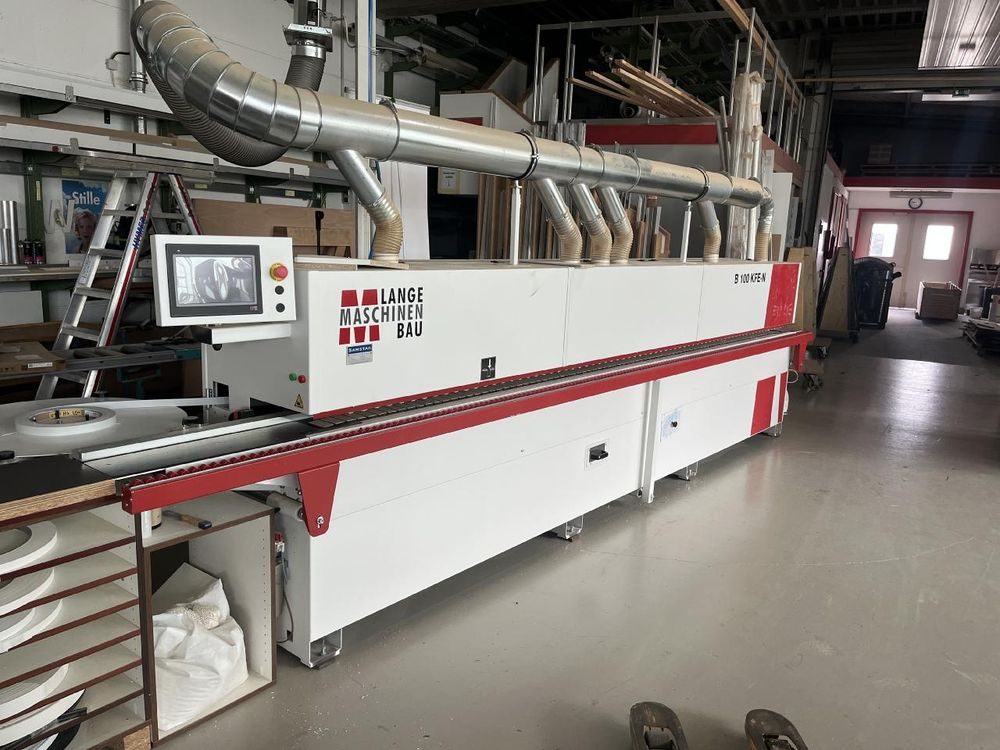

Lange B 100 KFE-N

Used machine
Well-maintained condition
Machine with grooves!

Technical Specifications:
Workpiece thickness 8 - 60 mm (10 - 50 mm with corner trimming)
Workpiece width min. approx. 75 mm / min. approx. 60 mm optional
Workpiece length edge thickness min. approx. 120 mm / min. approx. 180 with corner trimming
Edge thickness 0.4 - 3.0 mm / 8.0 mm
Chip removal of jointing unit max. 0 - 3.0 mm, continuously variable
Edge height = workpiece height + 4 mm (2 + 2)
With radius scraper unit with blow-off device + extraction
With flat scraper unit
With buffing unit
With horizontal grooving unit
With EVA/PUR glue pot with discharge function
With DIA tools height = 65 mm for jointing unit
With pneumatic pivoting of the mitre saw
With pneumatic adjustment ON/OFF for radius scraper
With pneumatic ON/OFF adjustment for flat scraper
With Riepe anti-stick spray unit on the joining unit/inlet
With Riepe cleaning spray unit on the outlet
With automatic chain track lubrication
With nesting package for milling unit and radius scraper at the bottom (one side)
With collector pipe system with 90° bend and hand washer mounted on the machine with a diameter of 200 mm
Electrical connection: Total connection: 400V, 50 Hz, 3Ph + N 11.95 kW
Feed speed: Pneumatic connection: 9/15 m/min.
Pneumatic connection: 6 bar
Dimensions: L x W 5766 x 1262 mm
Net weight: 1450 kg
