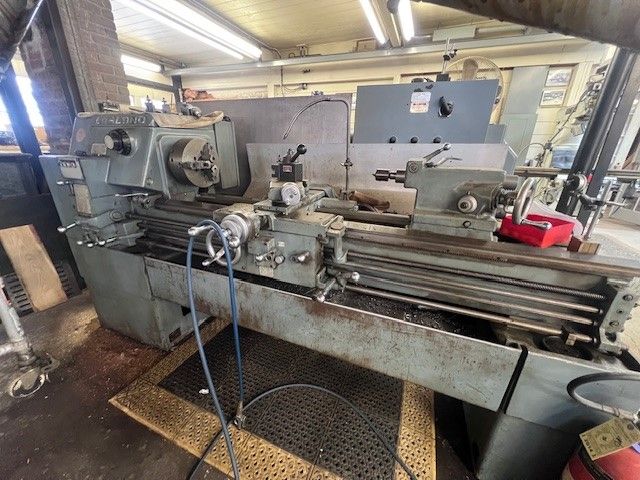

Leblond Engine Lathe 2,400 RPM TOOL & DIEMAKER

Maximum swing over bed ways 15"
Maximum swing over cross slide 9"
Distance between centers 54"
Width of bed 12-3/16"
Spindle speeds 31 - 2,400 RPM
Headstock & tailstock spindle center taper #4 Morse
Spindle bore 1-17/32"
Spindle nose, taper key drive, size L-0
Feed changes 0.0005 - 0.104 IPR
Threads, inch 4 - 224 TPI
Tailstock spindle taper #4MT
Tailstock spindle diameter 2-3/16"
Tailstock spindle travel 8"
Approximate weight 3,200 LBS
Equipped with hydraulic preselection of next spindle speed during cutting operation
Equipped with hardened and ground, replaceable steel bedways
Equipped with taper turning attachment
Equipped with 10" diameter 3-jaw buck chuck
Equipped with 4-jaw chuck
Equipped with Aloris quick change toolpost with holders
Equipped with threading dial
Equipped with micrometer carriage stop
Equipped with Jacobs drill chuck for tailstock
Equipped with live center for tailstock
Equipped with micrometer tailstock
Equipped with indexable spindle
Equipped with chip pan with self-contained coolant system
Spindle drive motor 5 HP
