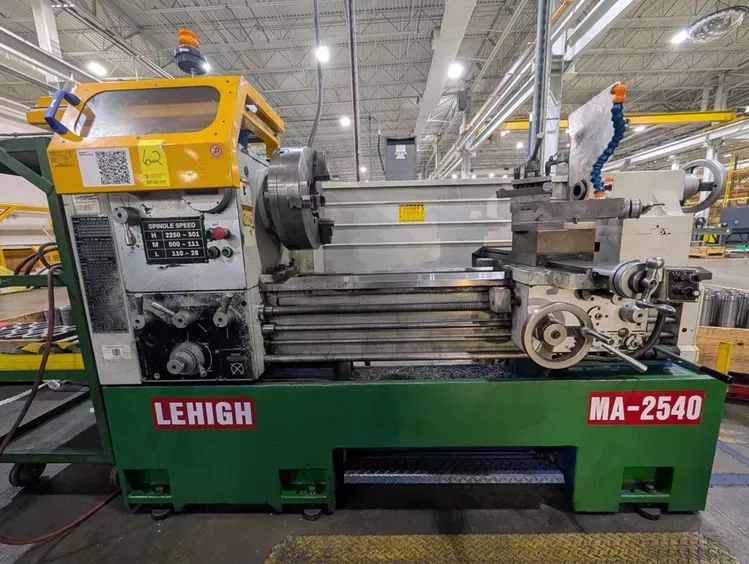

Lehigh Engine Lathe 2250 RPM MA-2540

Swing Over Bed Ways, Rated 25"
Swing Over Carriage 16"
Distance Between Centers 40"
Cross-Slide Travel 12"
Compound Travel 6"
Tailstock Quill Diameter 2.68"
Tailstock Quill Travel 6-5/8"
Tailstock Spindle Taper #5 MT
Hole Thru Spindle 3-3/8"
Spindle Speeds 28 to 2250 RPM
Thread Changes, Inch 4 to 56 TPI
Thread Changes, Metric 0.5 to 7 mm
Longitudinal Feeds 0.0024 to 0.035 IPR
Cross Feeds 0.0012 to 0.018 IPR
Motor Horsepower 10 HP
15" 3-Jaw Chuck
4-Way Toolpost
Threading Dial
Hardened & Ground Bed Ways
D1-8 Camlock Spindle Nose
Overall Dimensions L x W 8'4" x 4'6"
Overall Height 5'2"
Weight Approximately 4850 LBS
