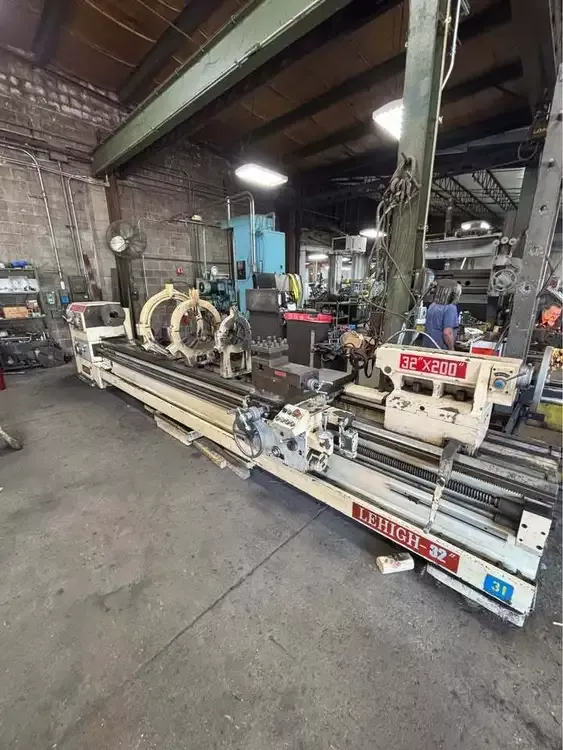

Lehigh Engine Lathe 800 RPM 32200B

Swing: 33"
Centers: 200"
Spindle Bore: 5"
Power: 20 HP
RPM: 800
Swing Over Cross Slide: 22"
Cross-Slide Cross-Feed Travel: 16"
Compound Rest Travel: 8"
Tailstock Quill Diameter: 4"
Tailstock Quill Travel: 12"
Tailstock Spindle Taper: #5 MT
Hole Thru Spindle: 5"
Swing Over Bed Ways, Rated: 32"
Swing Over Bed Ways, Actual: 33"
Swing Thru Gap: 44"
Spindle Speeds, Range: 6 to 800 RPM
(58) Thread Changes, Range: 1 to 42 TPI
(51) Metric Thread Changes, Range: 1 to 240 MM
(53) Modular Threads, Range: 0.5 to 120 MM
(42) DP Threads, Range: 1/8 to 30 D.P.
Motor Horsepower: 20 HP
Rapid Motor Horsepower: 1.5 HP
Overall Dimensions L x W: 286" x 76"
Overall Height: 64"
Weight: 18,500 LBS
5" Hole Thru Spindle
Inch-Metric Threading Capabilities
Threading Dial
Power Rapid Traverse
15" 3-Jaw Chuck w/Jaws
(3) Steady Rests
4-Way Toolpost
Hardened & Ground Bed Ways
D1-11 Spindle Nose
