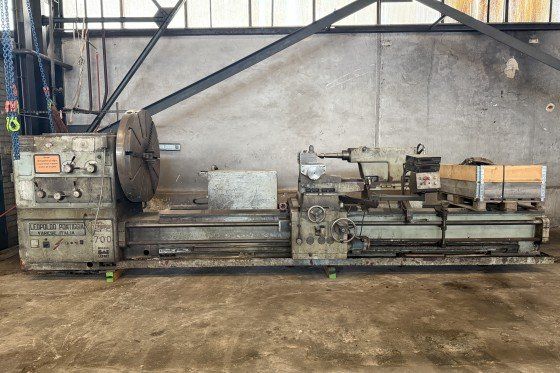

Leopoldo Pontiggia Engine Lathe 350 rpm SFE 700
Ref :
2782152-3-GO
Condition :
Used
Manufacturer :
Leopoldo Pontiggia
Type :
Engine Lathe
Spindle Speed :
350 rpm
Model :
SFE 700
Year(s) :
1980
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning length: 3000 mm
Swing over bed: 1390 mm
Swing over cross slide: 1020 mm
Spindle bore: 150 mm
Spindle taper: Metric 80 Mk
Spindle speed: 0 – 350 rpm
Spindle motor power: 18 kW
Bed width: 700 mm
Quill stroke: 300 mm
Workpiece load capacity: 8000 kg
Machine length: 6600 mm
Machine width: 1800 mm
Machine height: 2000 mm
Machine weight: 18000 kg
Features / Equipment
3 jaw chuck 1200 mm
Heidenhain digital readout X axis
Heidenhain digital readout Z axis
Feeds in 2 directions
Multifix tool system with inserts
