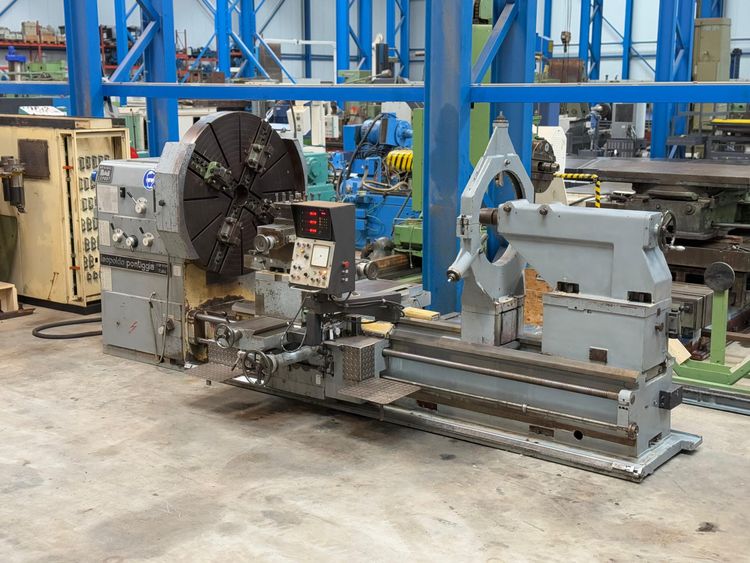

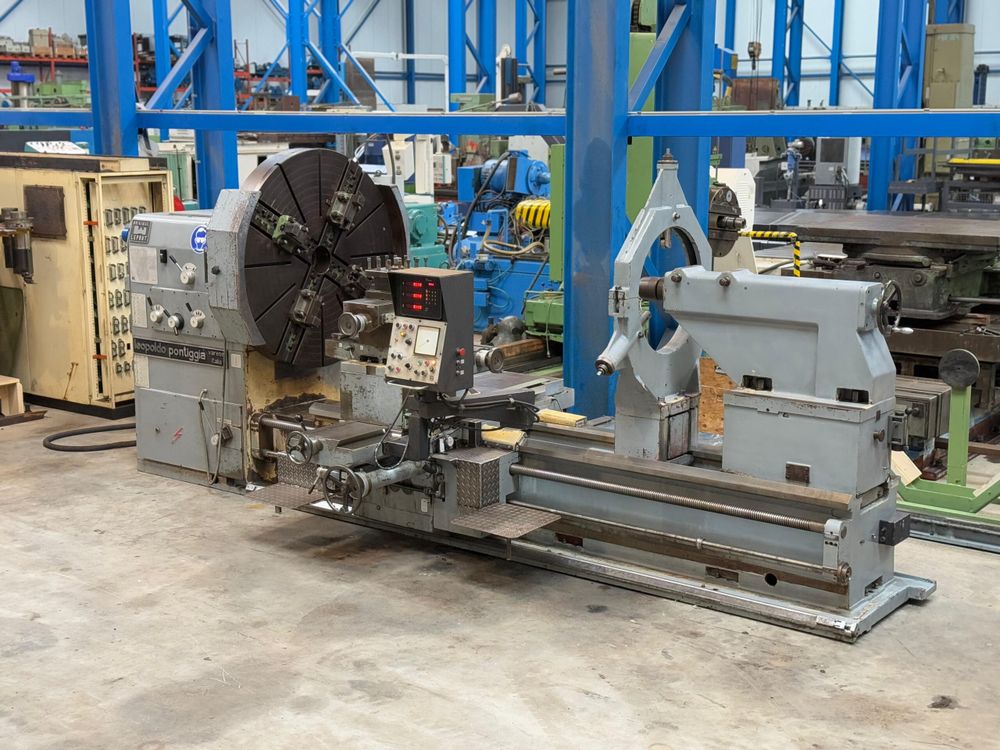

Leopoldo Pontiggia Engine Lathe 363 rpm SFE/CC 950
Ref :
2739110-3-MT
Condition :
Used
Manufacturer :
Leopoldo Pontiggia
Type :
Engine Lathe
Spindle Speed :
363 rpm
Model :
SFE/CC 950
Year(s) :
1980
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centers: 2,500 mm
Center height: 950 mm
Turning diameter over bed: 1,900 mm
Turning diameter over support: 1,520 mm
Spindle bore: 102 mm
Fixed steady: 700 mm
4-jaw chuck: 1,500 mm
Digital readout: Heidenhain
Speed range: 2.5–363 rpm
Variable speed adjustment
Motor power: 22 kW
Workpiece weight: 7,000 kg
Machine length: 7,000 mm
Machine width: 2,600 mm
Machine height: 2,400 mm
Machine weight: 12,500 kg
