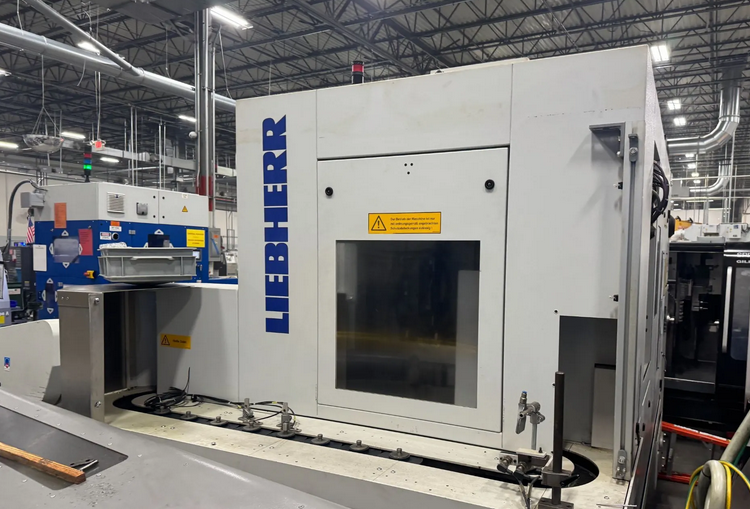

Liebherr LC 130 7000 RPM Gear Hobber
AMERICA North (USA-Canada-Mexico)
Liebherr LC 130
Year: 2012
Siemens 840D control
180-degree load arm
Load table
Hydraulic work clamping
Tailstock
1.25" hob arbor
Chip conveyor
Coolant system
Lubrication system
Hydraulic system
Vertical machine orientation
Maximum workpiece diameter: 130 mm
Maximum diametral pitch: 8.0
Maximum module: 2.75 mm
Axial travel: 200 mm
Maximum hob diameter: 80 mm
Hob arbor size: 1.25"
Hob spindle speed: 7000 RPM
Table diameter: 125 mm
Table speed: 1400 RPM
Center distance hob/work table: 10 mm (min)
Center distance hob/work table: 150 mm (max)
Hob head swivel angle: ±45 degrees
Maximum shift travel: 160 mm
Maximum hob length: 285 mm
Maximum toothed length: 190 mm
Rapid traverse axial: 7500 mm/min
Rapid traverse radial: 10,000 mm/min
Rapid traverse tangential: 15,000 mm/min
Rapid traverse A-axis: 30 degrees/sec
Hob spindle drive power: 15 kW
