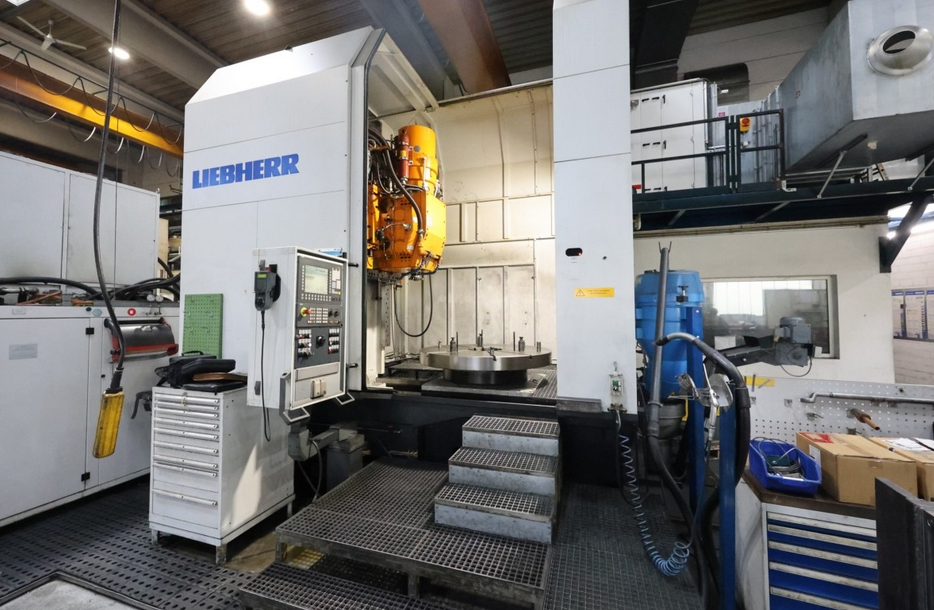

Liebherr WSC 1200 Variable Speed Gear Shaping Machine

Gear Hobbing Diameter (External): 1200 mm
Gear Hobbing Diameter (Internal): 1200 mm
Gear Hobbing Width (Max): 260 mm
Max Workpiece Diameter: 1500 mm
Control: Siemens 840D
Table Diameter: 900 mm
Table Hole Diameter / Depth: 320 / 520 mm
Max Table Load: 95 kN
Coolant Pump Capacity: 120 l/min
Axial Distance (Thrust Spindle to Table): 0–820 mm
Work Spindle Diameter: 125 mm
Tool Taper: SK 45 DIN
Table Speed: 12 1/min
Power Requirement: 30 kW
Machine Weight: 24 t
Machine Dimensions: 11,715 x 5,565 x 4,505 mm

Stroke Length (Min/Max): 0 / 270 mm
Stroke Length Adjustment Range: 270 mm
Stroke Rate: 10–270 double strokes/min
Sliding Head Max Travel Speed: 5000 mm/min
Axial Travel: 600 mm
Max Module (Rolling Slotting): 16 mm
Slotting Spindle Diameter: 125 mm
Max Tool Diameter: 300 mm
Max Broaching Wheel Speed: 25 rpm
Cutting Speed: 5–50 m/min
Column Lateral Adjustment: ±60 mm
