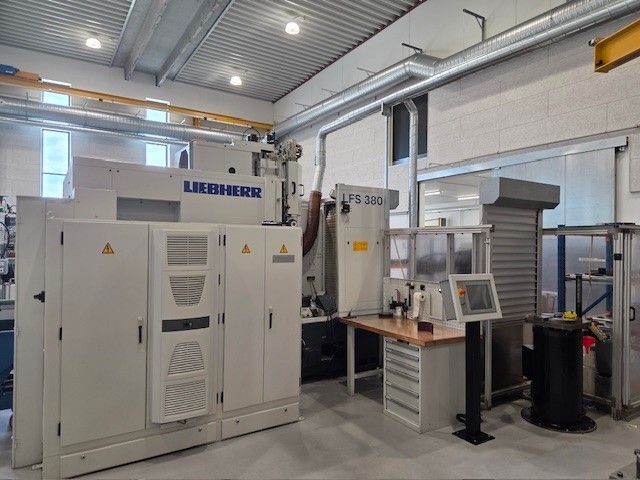

Liebherr LFS380 Variable Speed CNC Gear Shaping Machine
Ref :
2757525-3-AW
Condition :
Used
Manufacturer :
Liebherr
Model :
LFS380
Spindle Speed :
Variable Speed
Short Description :
CNC Gear Shaping Machine
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Siemens 840D
Max Gear Diameter: 380 mm
Max Workpiece Diameter: 400 / 600 mm (outside / inside)
Center Distance Between Gear Head and Table Center: -50 / 450 mm
Z Axis: 250 mm
Maximum Module: 6 mm
Maximum Axial Travel: 250 mm
Table Diameter: 400 mm
Table Hole: 150 mm
Drive Power of Face Milling Head: 37 kW
Face Milling Head Axis Angle Adjustment: ±0.5°
Stroke Length, Automatically Adjustable: 0–215 mm
Duo Cams for External and Internal Gear Cutting: Manual Switch to Change
Magnetic Chip Conveyor
