Liebherr LS-82 Maximum face width for spur gears 24 mm CNC GEAR SHAPING MACHINE
Ref :
2722148-3-MT
Condition :
Used
Manufacturer :
Liebherr
Model :
LS-82
Spindle Speed :
Maximum face width for spur gears 24 mm
Short Description :
CNC GEAR SHAPING MACHINE
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

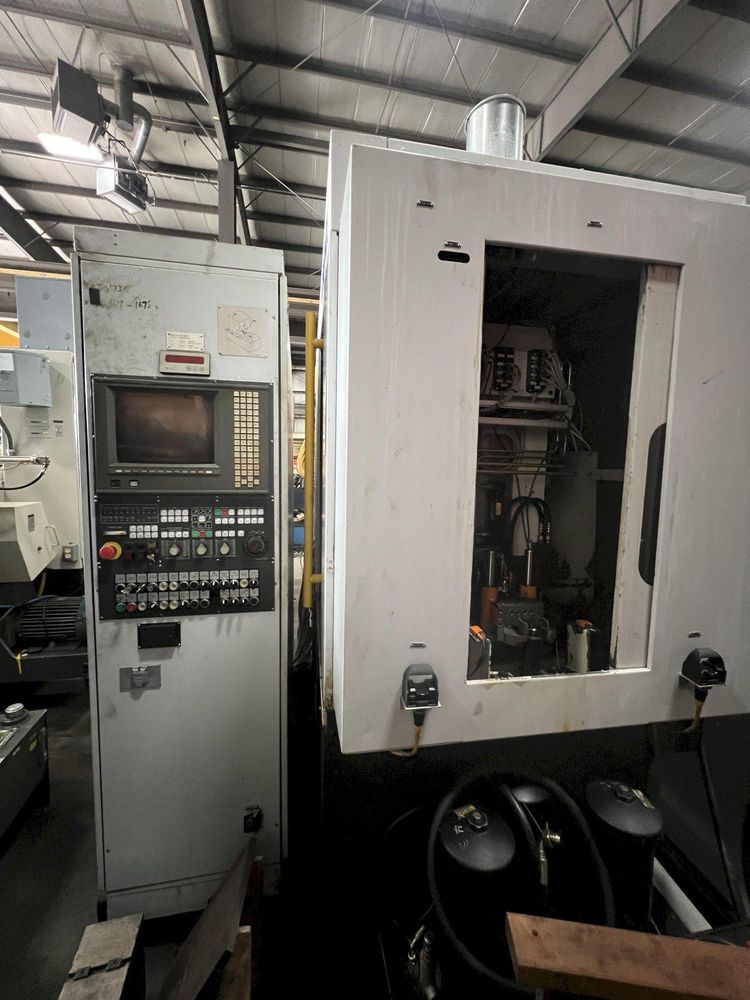

LIEBHERR LS-82
2001
Maximum gear diameter 80 mm
Maximum normal module 3 mm
Maximum helix angle 45°
Cutter spindle/worktable angle adjustment -0.5° to +0.5°
Stroke rate range 250–1500 double strokes/min
Tool rotational feed axis range 10–9420 mm/min
Workpiece rotational feed axis range 10–15700 mm/min
Column radial feed axis range 1–3750 mm/min
Electrical 460V / 3 phase
Equipped with GE Fanuc 15-MB CNC control
Equipped with chip conveyor
