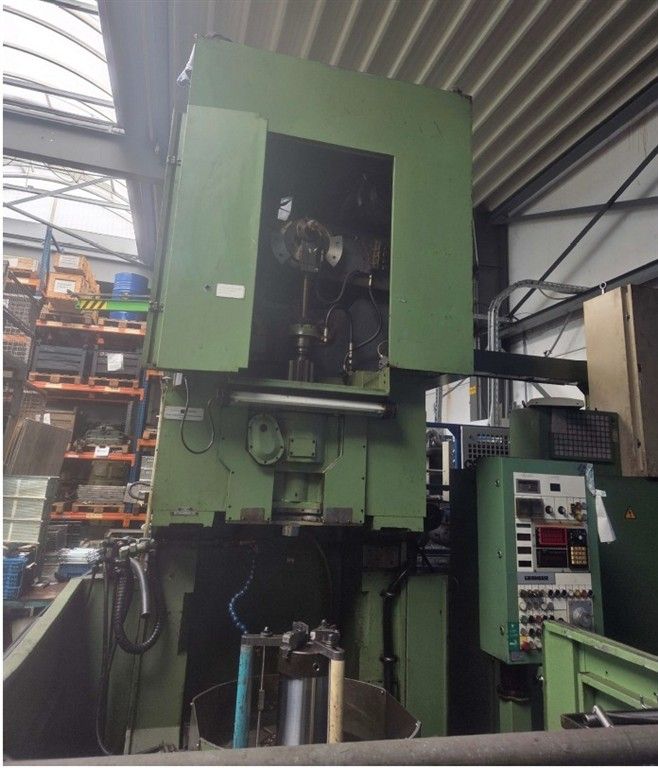

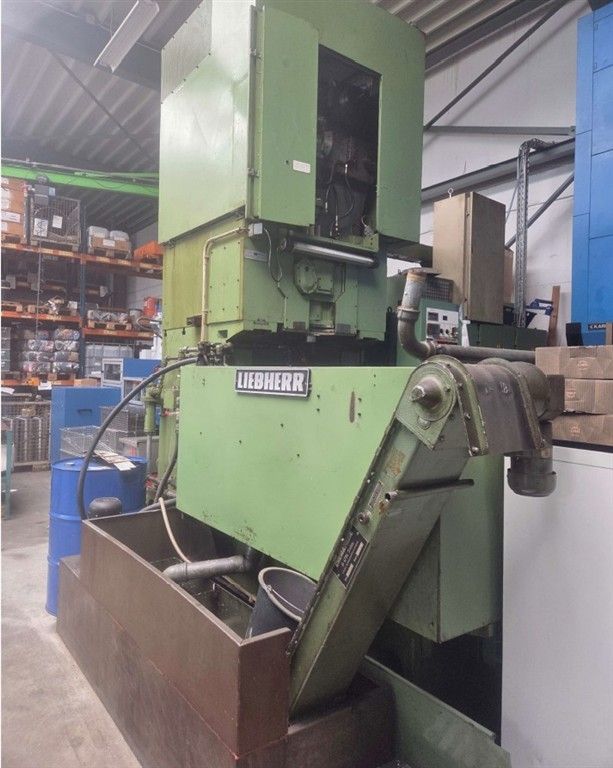

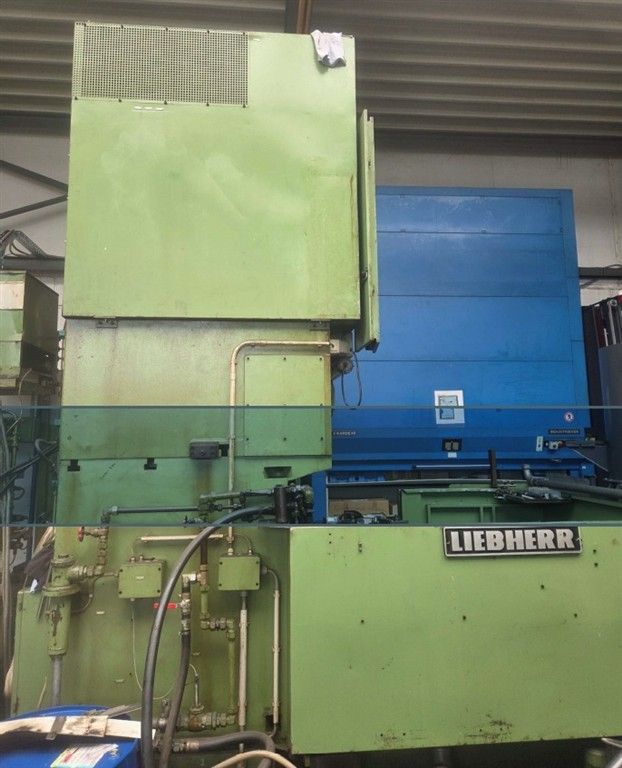

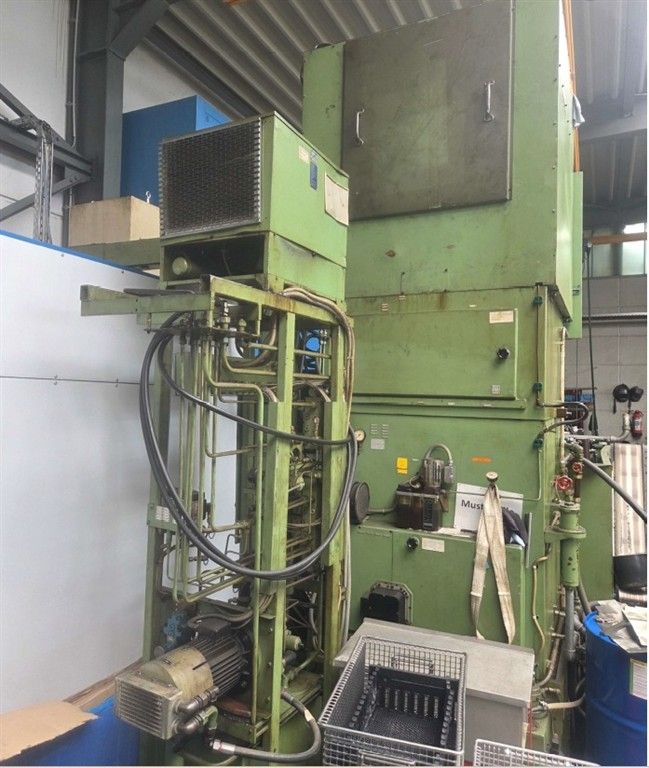

Liebherr WSC 501 Variable Speed Gear shaping machine
EUROPE (Western and Northern)
Control type: CNC

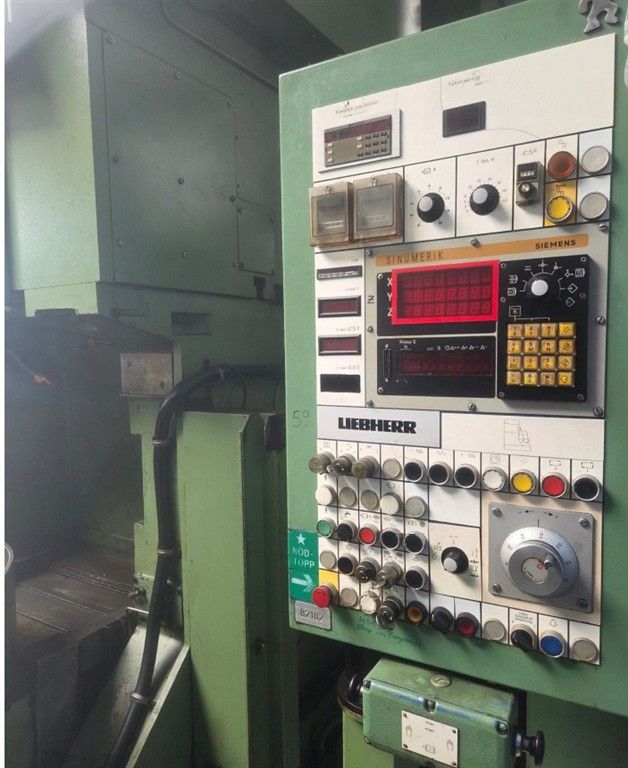

Control name: Siemens
Max. wheel diameter: 780 mm
Wheel width: 130 mm
Max. module: 10
Machine weight: 8.5 t
Stroke rate: 30 strokes/min
Fully functional machine, Little used

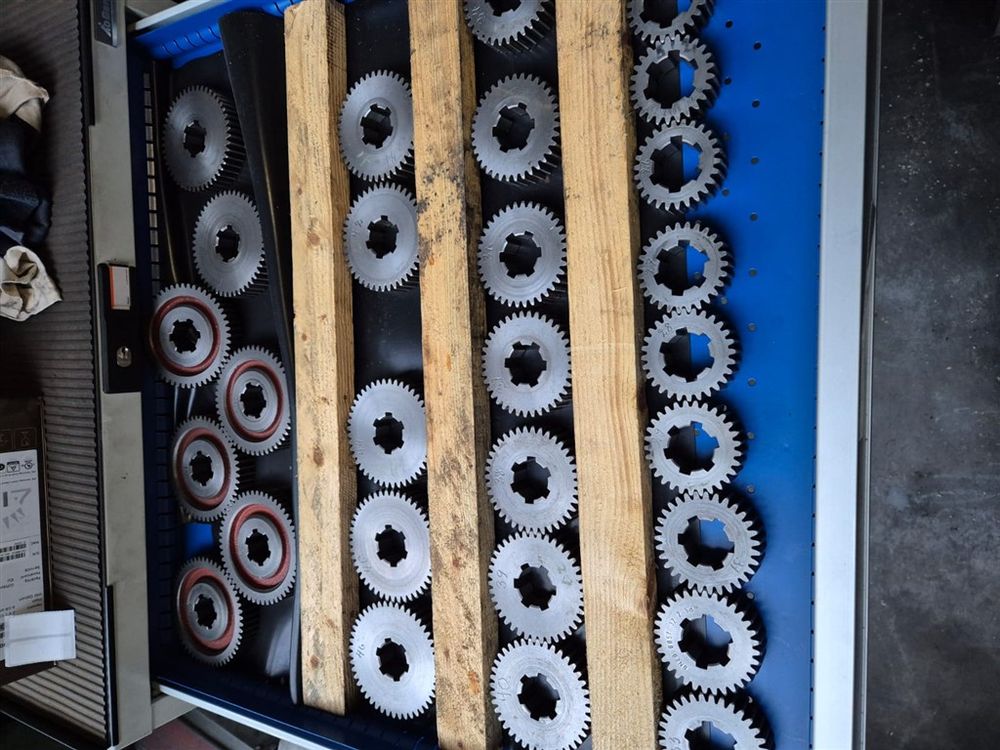

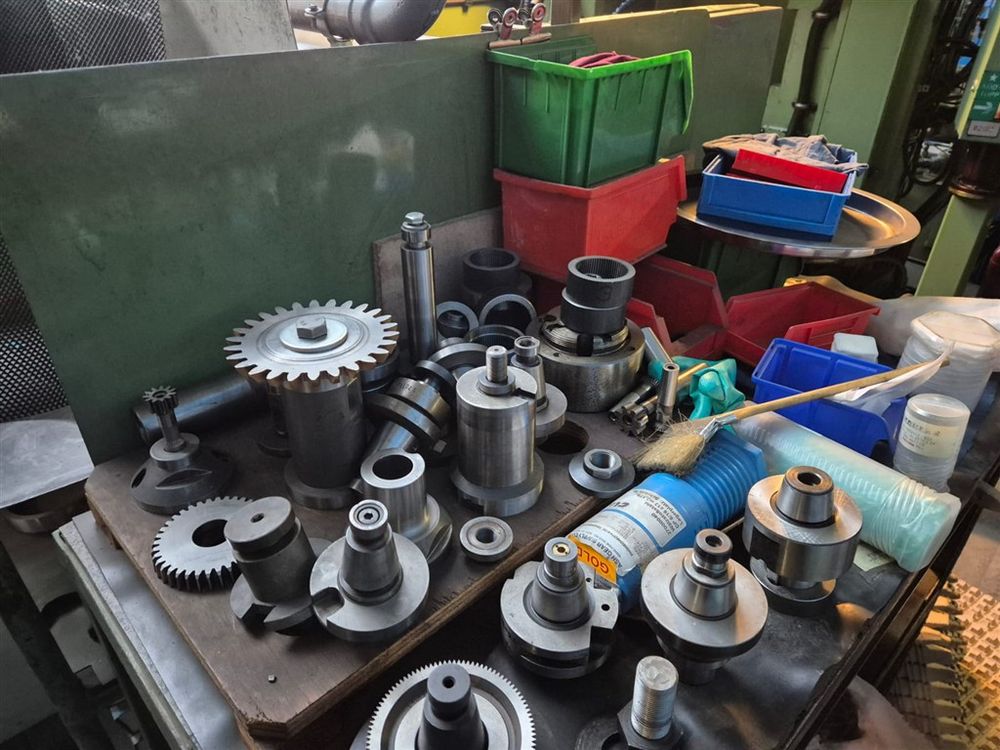

There are some Tools and Change gears
Liebherr WSC501 CNC gear shaping machine, used, ready for use
Manufacturer: Liebherr
Type: WSC 501
Details:
Max. gear shaping module: 8mm
(30°gears possible up to module 10°)
Max. gear width: 130mm

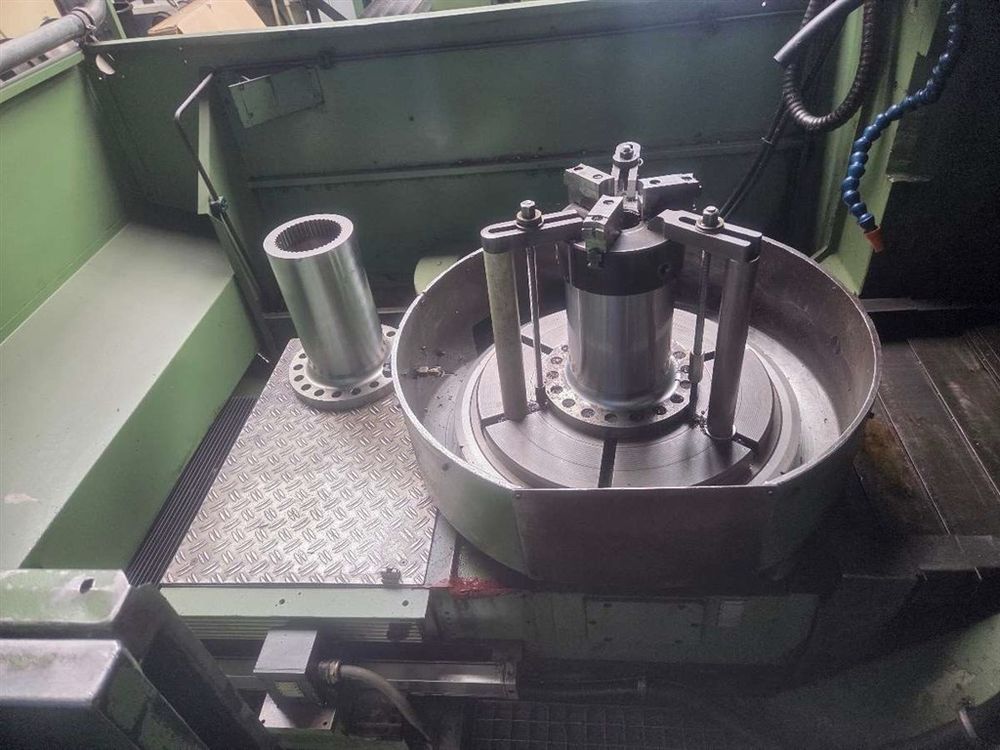

Diameter of the machine table: 500mm
Maximum wheel diameter: 780mm
Shut height – table: 650mm
Stroke rate min. 30DH/min
Continuously adjustable max. 1500 DH/min.
Operating voltage: 380V
Frequency: 50Hz
Control voltage: 110V
Connected load: 36 kVA
Rated current: 55A
Weight: 8500kg
Dimensions: approx. 4,85 x 3,655 x 3,78
(width x depth x height in m)
The machine has seen only very limited use in our company.
It remains fully operational and can be demonstrated in function upon appointment.
Comprehensive documentation is also available
