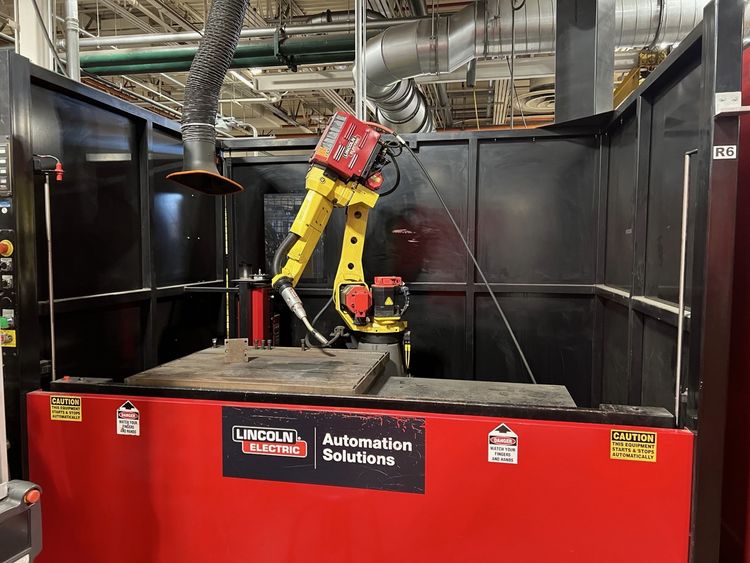

Lincoln Electric System 5 Robot Welding Cell 6 Axis 22 lbs (10 kg)

Robot axes 6
Robot payload 22 lbs (10 kg)
Robot reach 56″
Controller FANUC R-30iB
Software ArcTool
Memory 64 MB DRAM / 64 MB FROM / 3 MB SRAM
Worktable size 70″ × 24″
Worktable capacity 2,500 lbs
System dimensions 96″ × 70″
Input power requirement 440–575 V / 3 Phase / 60 Hz
Lincoln R350 Welding Power Supply
4R100 Wire Drive Unit with 4 Powered Rolls (up to .045″ Solid or Cored Wire)
ENet Cable Assembly 25′
Quick Mounting Bracket Kit
AD1121-257 Torch Package (LEA500AC 3.5′ 22D, .035″–.045″ OiB)
KP1505-035S Drive Roll Kit (.035″)
S23214-13 Model A 16 Outputs Relay
S23214-18 Model A 16 Inputs Positive 24VDC
AD1312-23 ArcLink XT 25′ Cable Kit
AD1253-254 PMC Robot Software (Programmable Machine Controller, Ladder Logic)
AD1253-77 CheckPoint Cloud-Based Production Monitoring
AD1253-37-FI Torch Guard Software (Collision Guard, TorchMate 3, Payload ID)
AD1253-90 TouchSense & TAST Bundle (TouchSense, Thru-Arc Seam Tracking)
AD1564-1 System 5 Workcell with Palletized Base & Surround Enclosure
Pneumatic Pop-Up Curtain for Arc-Flash Protection
Operator Palm Station with Cycle Start, Reset, and E-Stop
