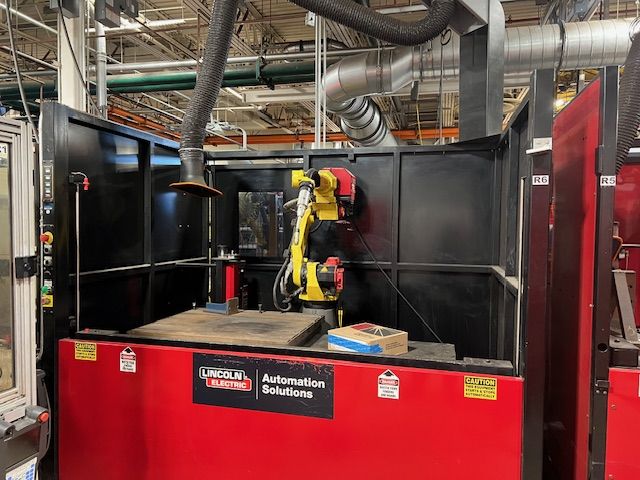

Lincoln Electric System 5 6 Axis 22 Lbs (10 Kg)

Robot Arm FANUC AM100iC
Robot axes 6
Robot payload 22 Lbs (10 Kg)
Robot reach 56″
Controller FANUC R-30iB
Memory 64 MB DRAM, 64 MB FROM, 3 MB SRAM
Welding Power Supply Lincoln R350
Wire Feeder 4R100 Wire Drive (4 Powered Drive Rolls, Up To .045″ Solid Or Cored Wire)
Torch Package AD1121-257 With LEA500AC, 3.5′ 22D, .035″–.045″ OiB
Drive Roll Kit KP1505-035S (.035″)
Outputs Model A 16 Outputs Relay (S23214-13)
Inputs Model A 16 Inputs Positive 24VDC (S23214-18)
ArcLink XT Cables AD1312-23 Kit (25 Ft)
Worktable Size 70″ × 24″
Worktable Capacity 2,500 Lbs
System Footprint 96″ × 70″
FANUC ArcTool Software
PMC Robot Software AD1253-254 (Programmable Machine Controller, Ladder Logic)
CheckPoint Cloud Monitoring Software AD1253-77
Torch Guard Software AD1253-37-FI (Collision Guard, TorchMate 3 TCP Adjustment)
TouchSense & TAST Bundle AD1253-90 (TouchSense, Thru-Arc Seam Tracking)
System 5 Workcell AD1564-1 With Palletized Base And Surround Enclosure
Pneumatic Pop-Up Curtain For Arc-Flash Protection
Operator Palm Station With Cycle Start, Fast Reset, And E-Stop
Power Reamer & Wire Clipper AD2391-1 With Anti-Spatter Fluid
Educational 2D iRVision Package With FANUC XC-56 CCD Scan Camera
Banner LED Red Spotlight
