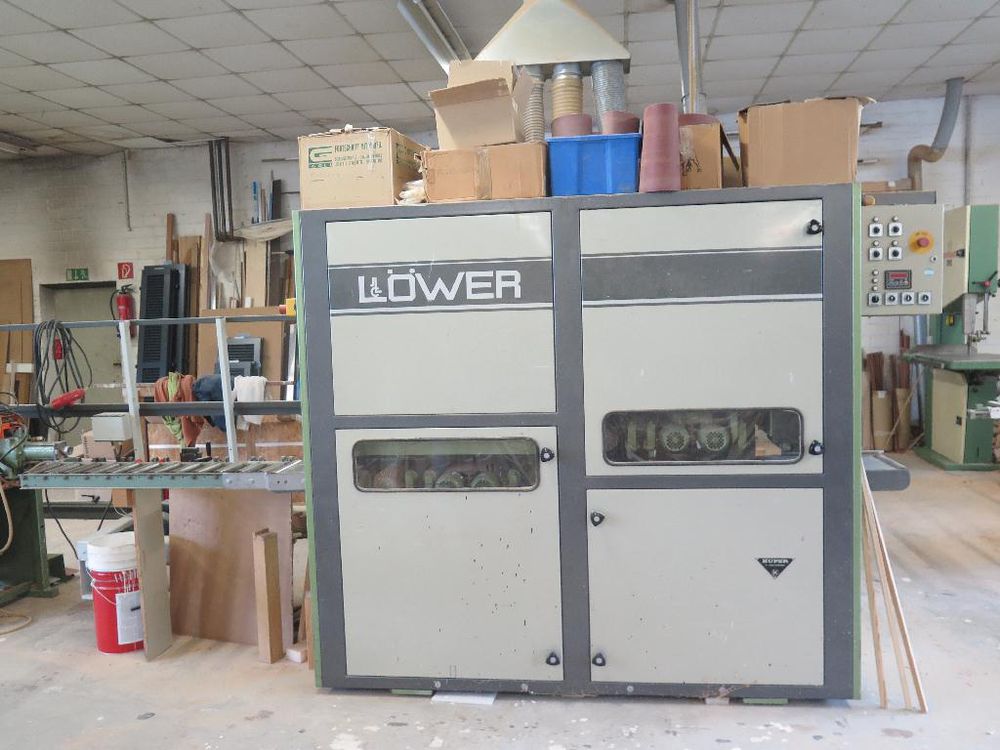

Lower DSM 3000

Sanding pad and brush from above and below
Sanding width 300 mm
Max. clearance 200 mm
Oscillating sanding belts
Sanding belt width 320 mm x sanding belt length 1800 mm
Grinding motor - rated power 2 x 7.5 kW
Grinding motor - rated current 2 x 15.4 A
Grinding motor - speed 2870 rpm
Feed motor - rated power 0.25 / 0.55 / 1.0 kW
Feed motor - rated current 1.0 / 1.9 / 2.6 A
Feed motor - speed 700 / 950 / 1420 rpm
Sanding belt speed 1300 m/min.
Feed speed 6 / 11 / 16 m/min.
Brush motor - rated power 2 x 0.37 kW
Brush motor - speed 1405 rpm
Brush length: 290 mm
Brush diameter 120 mm
Height adjustment motor - rated power: 0.37 kW
Height adjustment motor - rated current: 0.81 / 1.15 A
Height adjustment motor - speed: 600 / 2680 rpm

Extraction
Connection diameter 2 x 150 mm, 2 x 120 mm
Air requirement: 2515 m³/h
Minimum air velocity at the machine connection: 20 m/s
Vacuum pressure at the extraction nozzle: 889 Pa
Machine dimensions: length 2660 mm x width 1020 mm x height 1890 mm
Weight: 1600 kg
