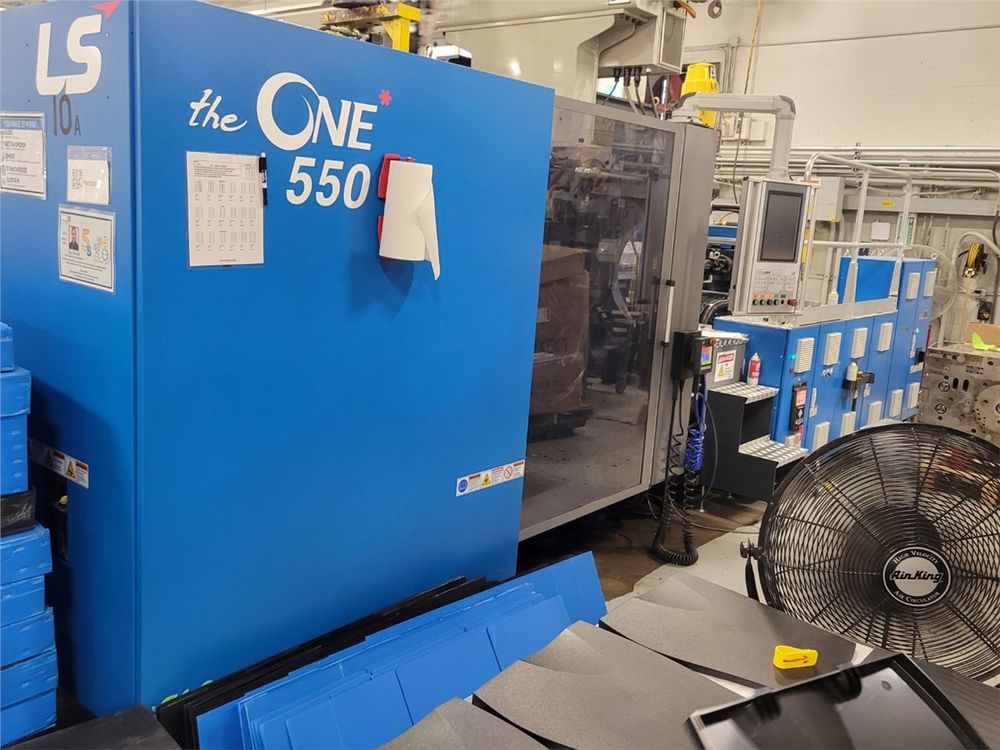

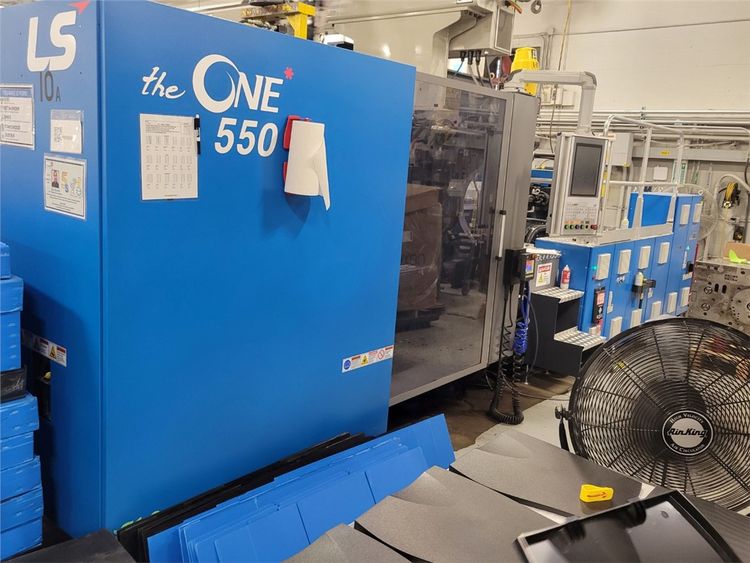

LS Mtron One 550 i30 550 T

550 Ton LS Mtron Injection Molding Machine, New In 2023
550 Ton Servo Hydraulic Clamp
62.9 OZ Shot Size
36.2" X 33.9" Tie Bar Spacing
51.2" x 45.2" Platen Size
25.6"/47.25" Mold Opening Stroke
13.8"/35.4" Min/Max Mold Height
9.8" Ejector Stroke
11.7 Ton Ejector Force
Max Daylight 61.00"
80MM Diameter Screw
15.2" Screw Stroke
Max Mold Weight 17,637 LBS
Keba 15" Touch Screen Controller
Hydraulic Core Pull
Air Blow
Euromap 67 Robot Interface
Tie Bar Pullers On The Non-Operator Side
480/3/60
Dimensions: 298.8" Lx 98.4" W x 86.4" H
Weight: Clamp 31,000 LBS, Injection Unit 12,200 LBS
Under 12000 Hours
