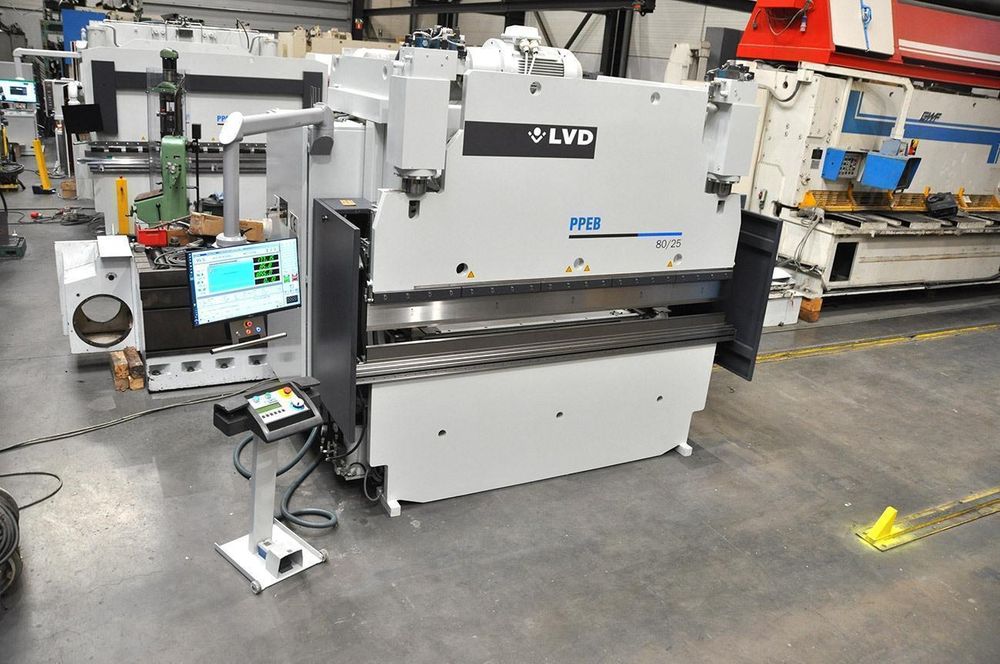

LVD PPEB 80 ton x 2500 mm CNC
Ref :
2725930-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB
Pressure :
80 ton x 2500 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
LVD PPEB 80 ton x 2500 mm CNC
Capacity: 80 ton x 2500 mm
Backgauge: CNC
Control: Cadman-B + Touch
Passage between uprights: 2050 mm
Max stroke: 200 mm
Max distance between table and ram: 400 mm
Depth of throat: 400 mm
Table width: 120 mm
Locking speed: 130 mm/sec
Working speed: 11 mm/sec
Returning speed: 113 mm/sec
Electric motor power: 12.5 kW
Machine weight: 6.2 ton
Axes: Y1
Axes: Y2
Axes: X
Axes: X'
Axes: R
Axes: Z1
Axes: Z2
Axes: V
Upper tooling type: LVD
Lower tooling type: LVD hydraulic
Optional equipment: Willa hydraulic adapter (modifix) Trumpf
