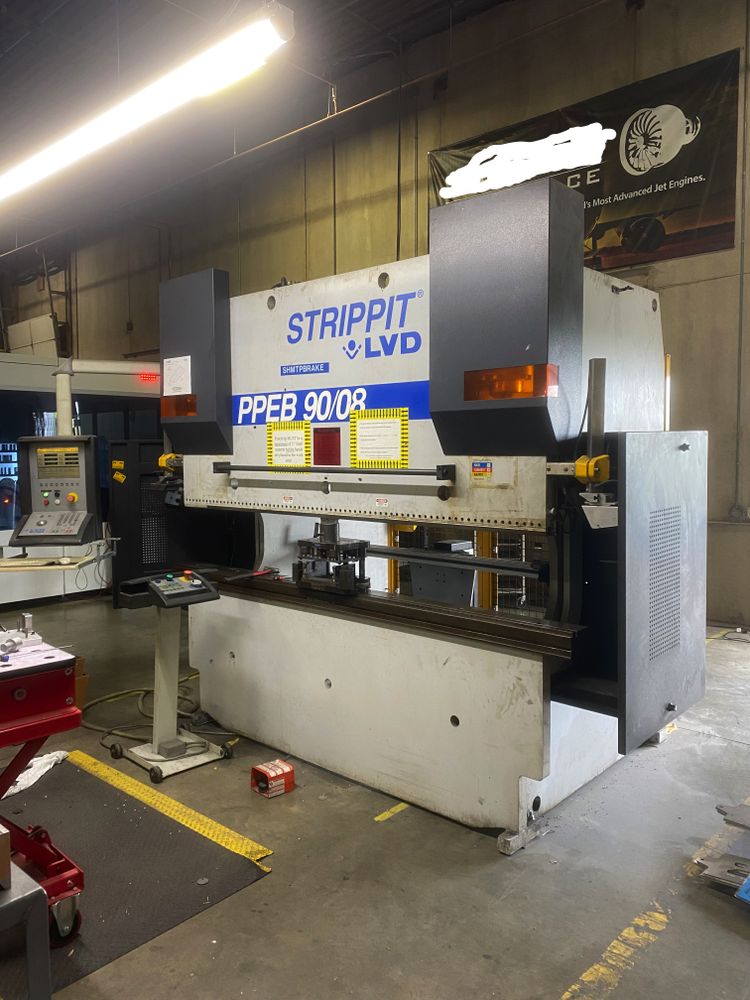

LVD PPEB CADMAN 90 ton capacity

90 ton capacity
Bed length: 98"
Distance between housings: 80"
Stroke: 7.9"
Open height: 15.7"
Closed height: 7.8"
Approach speed: 307 IPM
Forming speed: 28 IPM
Return speed: 320 IPM
Bed width: 4.7"
Throat depth: 15.7"
Backgauge X-axis range: 24"
Oil capacity: 33 US gal.
12 HP main motor
480 V / 3 phase / 60 Hz
LVD Cadman CNC control
Programmable tonnage
High-resolution color graphics display
RS-232 port
CD-ROM drive
Floppy drive
Multilingual programming
Graphical bending sequence display
Automatic inch/metric conversion
Programmable ram tilt
Power clamp upper toolbar
Programmable crowning
2-axis backgauge (X, R)
Laser light curtains
High-speed servo hydraulic system
Pedestal palm station
Electric foot switch
Heidenhain scales
