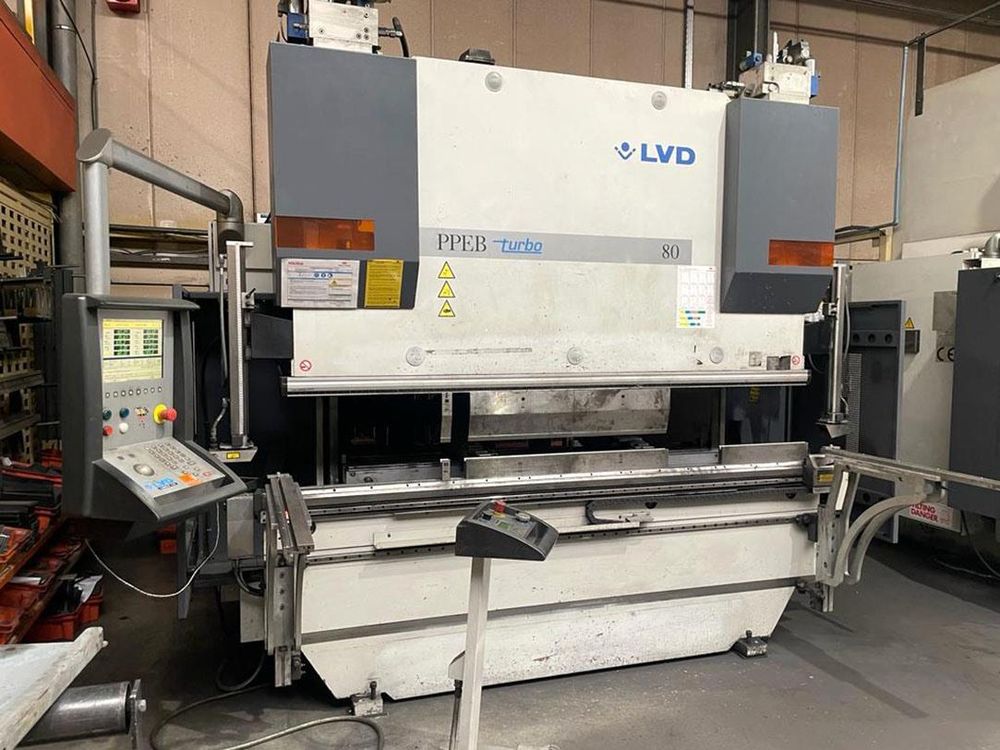

LVD PPEB Turbo 80 ton x 2500 mm CNC 80 ton
Ref :
2731170-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB Turbo 80 ton x 2500 mm CNC
Pressure :
80 ton
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 80 ton
Bending length: 2500 mm
Passage between uprights: 2050 mm
Max stroke: 200 mm
Max distance between table and ram: 400 mm
Throat depth: 400 mm
Table width: 150 mm
Locking speed: 130 mm/sec
Working speed: 11 mm/sec
Returning speed: 113 mm/sec
Electric motor power: 20 kW
Length: 4355 mm
Depth: 2525 mm
Height: 3000 mm
Weight: 6.5 ton
CNC backgauge
Cadman B + Touch control
8 axes: Y1, Y2, X, X', Z1, Z2, R, V
Easy Form Laser Measuring System (EFL)
Wila Modufix tooling (upper and lower hydraulic clamping)
Lasersafe security
2 movable plate supports
