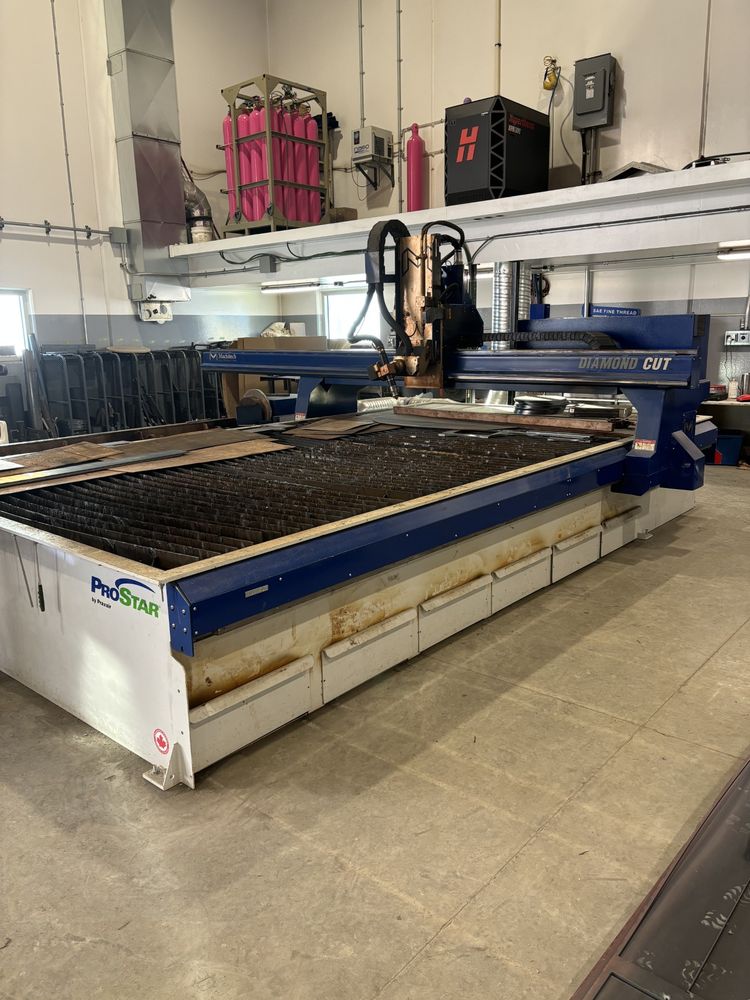

MACHITECH DIAMOND CUT CNC CONTROL

X-Axis Travel: 8’
Y-Axis Travel: 12’
Maximum Table Capacity: 4”
Space Under Gantry: 8.5”
Max Traverse Speed: 1,800 IPM
Positional Accuracy: 0.002”
Repeatability: 0.001”
Hypertherm XPR 300 Plasma Source
Mild Steel Pierce Capacity (argon-assist): 2”
Mild Steel Severance: 3-1/8”
Mild Steel Pierce Capacity (standard O₂): 1-3/4”
Stainless Steel Pierce Capacity: 1-1/2”
Stainless Steel Severance: 3”
Aluminum Pierce Capacity: 1-1/2”
Aluminum Severance: 2”
Torch Lifter Stroke: 9.8”
Bevel Angles: ±50°
Pipe Length Capacity: 10’
Pipe Diameter Range: 2”–12”
Pipe Capacity: 75 lbs/ft
Automatic Torch Height Control
5-Axis Full Contour Beveler
10’ Pipe Cutting Attachment
Quick Change Oxyfuel Torch
