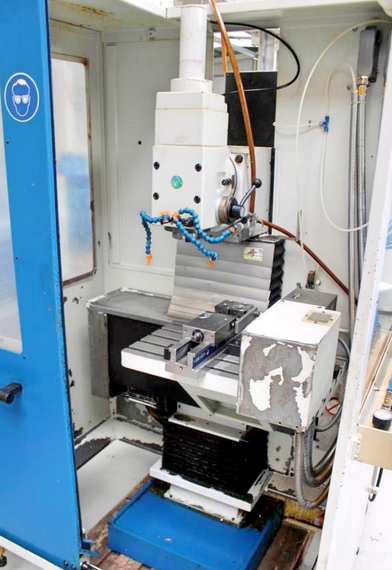

MACMOM / INAS M 343 B CNC Vertical 4200 rpm

X-axis travel 400 mm
Y-axis travel 250 mm
Z-axis travel 400 mm
Control TNC 410 CA
Tool taper ISO 40
Spindle speed range 30–6300 / 20–4200 rpm
Quill stroke 90 mm
Feeds 0–10,000 mm/min
Table size 600 × 320 mm
T-slots 5 × 14 × 63 mm
Spindle hours approx. 126
Motor power 11 kW
Machine weight 1300 kg
Machine dimensions (L × W × H) 1600 × 1500 × 1900 mm

HEIDENHAIN electronic remote control with handwheel
Pivoting control panel
Hydraulic tool clamping (tie bolt DIN 69872-A)
Vertical milling head rotatable on both sides
Robust rigid angle table with 5 T-slots
Coolant device with tub
Swarf spray protection cabin
Instruction manual

Pneumatic clamping plate with aggregate
WALTER TANIH125 NEGI-R dividing head
HILMA RÖMHELD type SM 100 machine vice
Many tool holders
Machine swing feet
