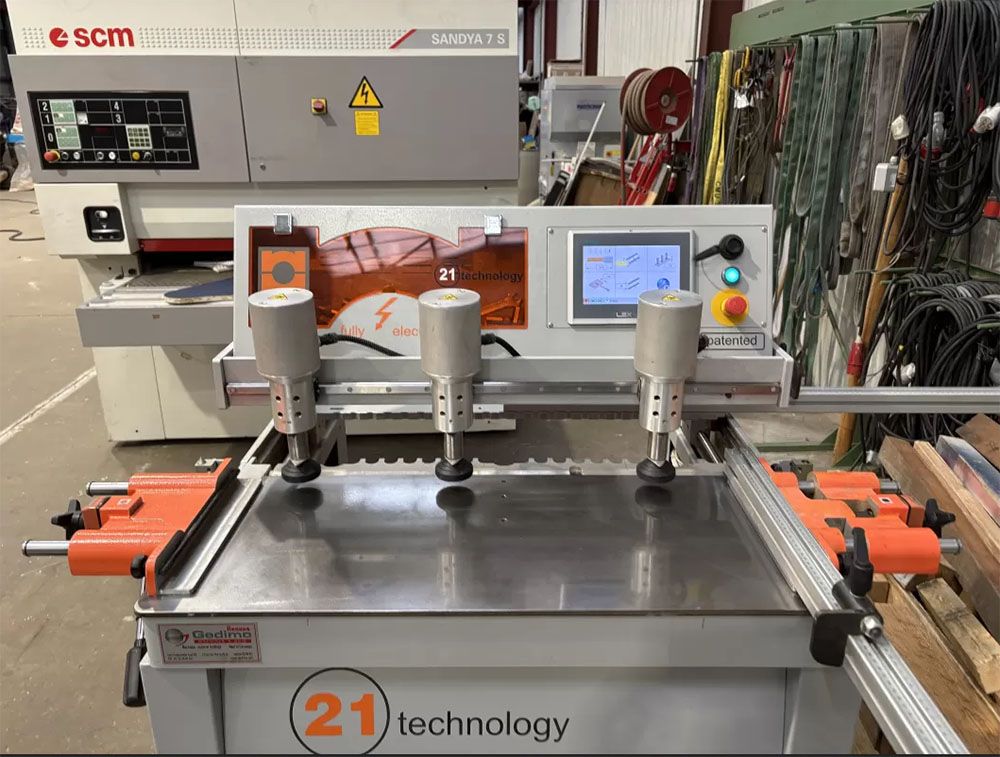

Maggi BORING SYSTEM 21 TECHNOLOGY

DIGITALLY CONTROLLED DRILL
MAKING CAPACITIES:
- Maximum workpiece dimensions:
Width (x): 670 mm
Length (y): 3000 mm
- Maximum drilling depth (adjustable stroke): 65 mm
- Tilting 32 drilling system 0-90° with intermediate positions 30, 45, and 60°

Number of holes: 21 Maximum center distance: 640 mm
Hinge die can be used (accessory available upon request)
- Chuck speed: 2800 rpm
Cycle activation via foot pedal

MACHINE COMPONENTS:
- 21-spindle drilling head for quick-release chucks
Recommended consumables: drill bits 10mm diameter shank, usable width up to 40mm diameter
- Table usable dimensions: x mm

Work surface height: 87.5 cm
- 3 pneumatic clamps
- 2 aluminum rulers that can be used as lateral guides
with a total of 4 movable and retractable stops that can be used as repeating stops
- Accessories available on request
Examples: ruler extension, additional ruler, stops, drilling die for hinges, 45° stop for frames, sockets, drill bits, etc.

OTHER FEATURES:
- 400V power supply. 50Hz - 3.8A nominal current
- Main motor power 1.5 kW
- Pneumatic vertical movement
- Pneumatic supply: Bars
- Suction inlet: Ø mm
- CE marking, lockable disconnect switch, emergency stop button
Transport dimensions: 1.30 x 1.10 x 1.30 m (H)
Total weight: 260 kg
