Maggi Boring System 323
EUROPE (Western and Northern)

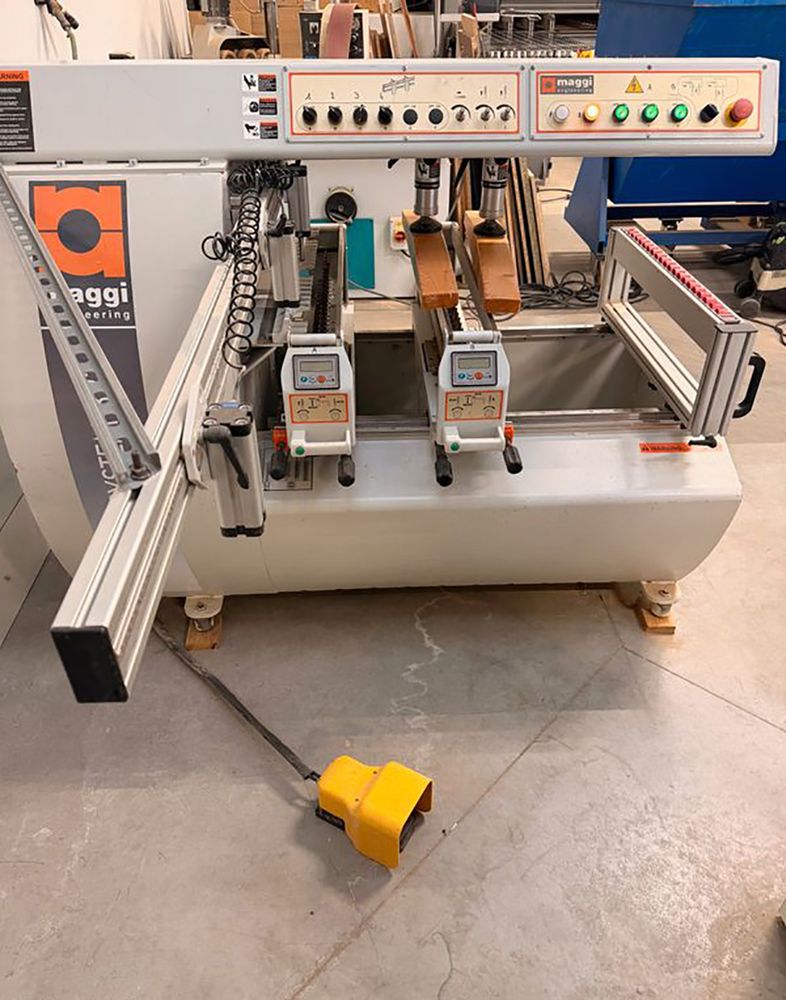

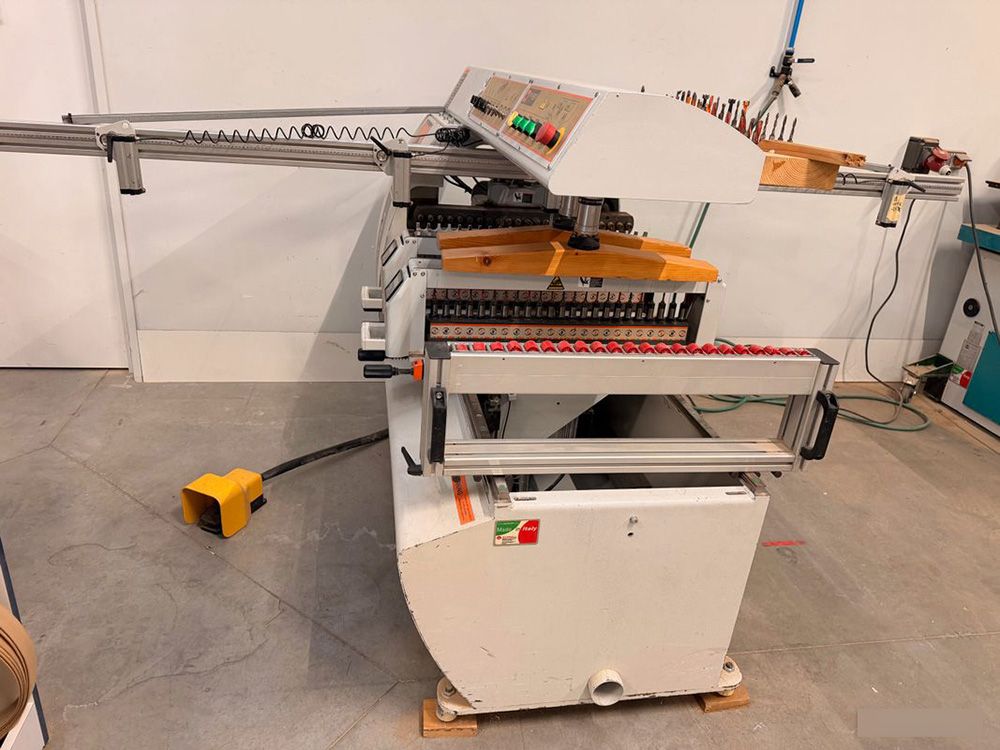

Multi-spindle drill, semi-automatic with 3 drilling heads: 1 fixed horizontal and 2 mobile vertical

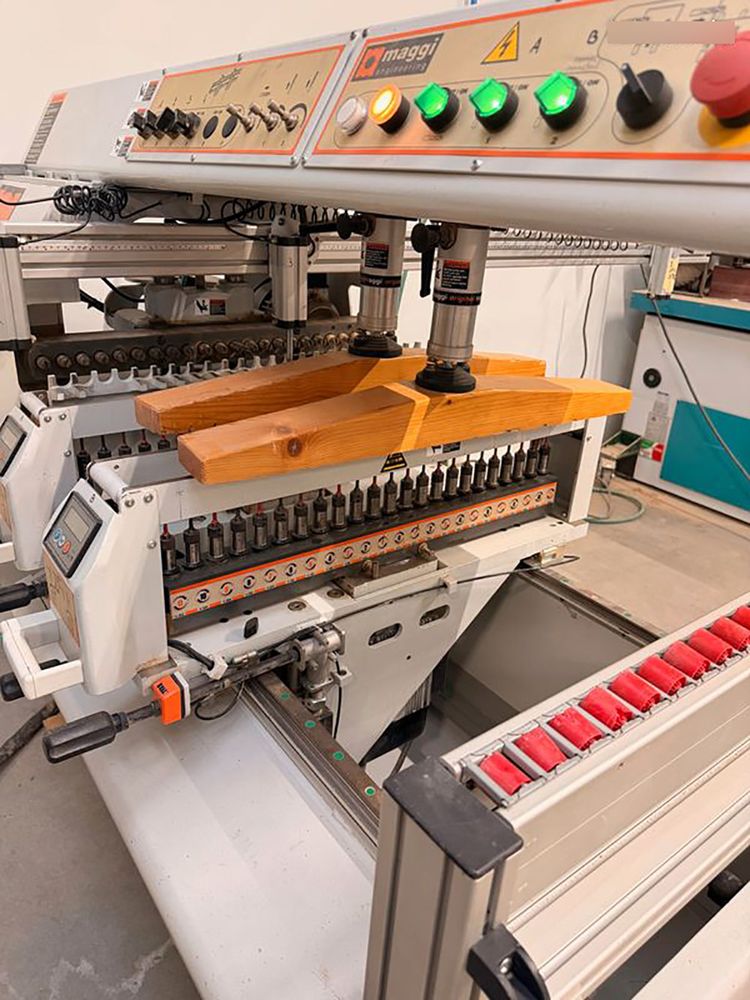

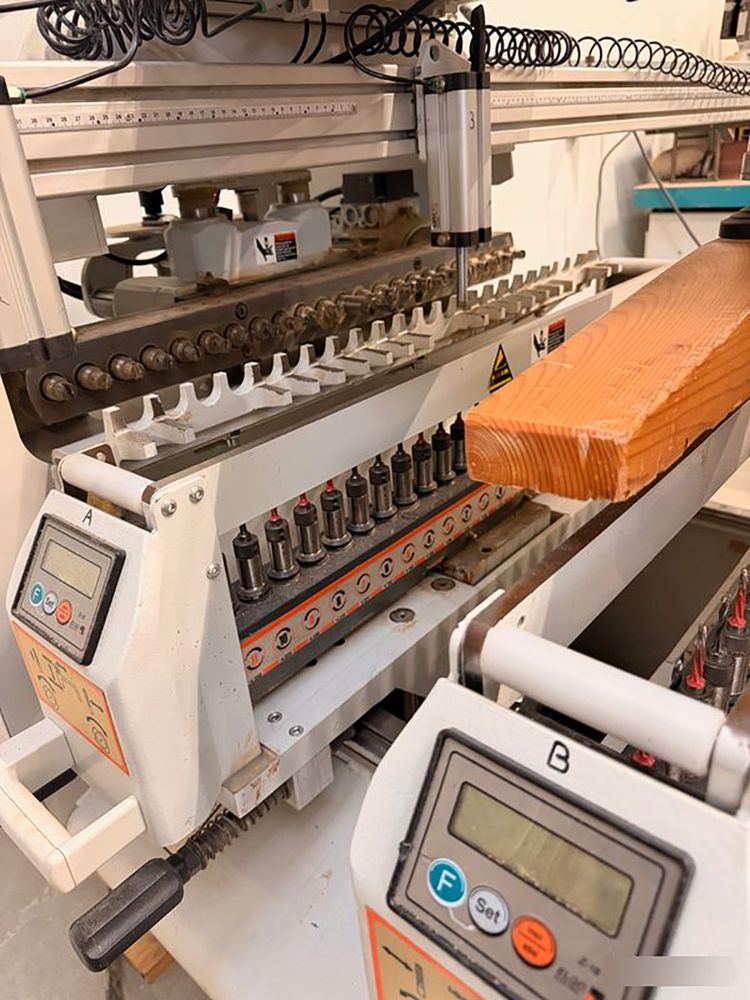

Drilling heads: 3
Distance between heads (min - max): 150 - 867 mm
Chucks per head: 23
Left and right chucks for each head: 11 - 12
Chuck center distance: 32 mm
Total center distance between each head: 704 mm
Distance from stop to rear head #1 (min - max): 9 - 450 mm
Distance from stop to front head #2 (min - max): 159 - 876 mm
Max. tool diameter: 40 mm
Max. drilling depth: 50 mm vertical / 65 mm Horizontal
Work table height 900 mm
Max. panel thickness 60 mm
Max. panel dimensions 870 x 3000 x 60 mm
Number of motors HP 2 / KW 1.5 - RPM 2800 (x3)
Pneumatic circuit pressure BAR 6/8
Air consumption per work cycle NL 30
Diameter of connection hole to the dust extraction system 80 mm
"Overall dimensions (with both roller tables fully extended) (with ruler mounted)" 1790 x 1000 x 1350 mm
Net weight 750 kg
Packing dimensions (machine) 1900 x 1150 x 1500 mm
"Packing dimensions of the rulers (each carton - there are 2 cartons in total)"
